Same model may have multiple batches, images only for reference.

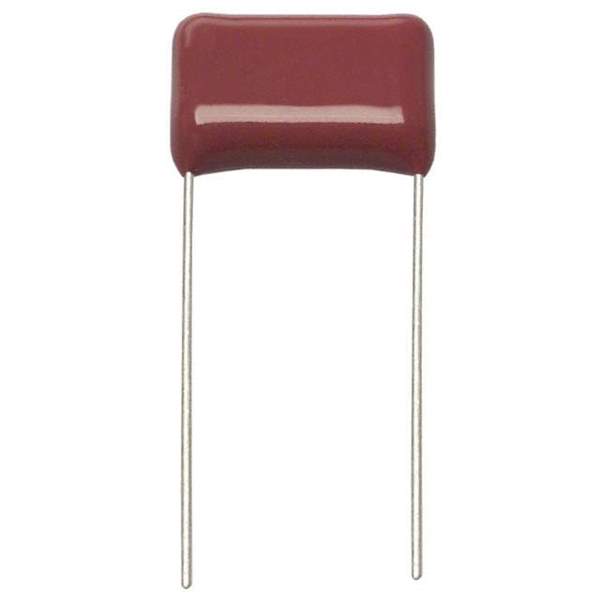

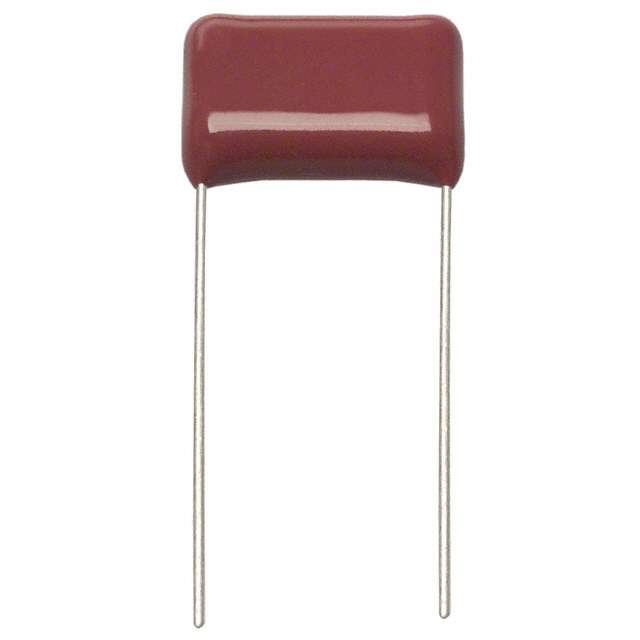

ECW-H16332JV Real Image
Same model may have multiple batches, images only for reference.

ECW-H16332JV

Part No ECW-H16332JV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 3300PF 5% 1.6KVDC RAD / 3300 pF Film Capacitor 424V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-H(V)
Package Bulk
Capacitance 3300 pF
Tolerance ±5%
Voltage Rating - AC 424V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max) 0.630" (16.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching
Base Product Number ECW-H
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1351431-ECW-H16332JV
Ultra Librarian 3D Model Ultra Librarian ECW-H16332JV CAD Model

Description

The ECW-H16332JV is a film capacitor from Panasonic.

  • Series: ECW-H(V)
  • Application: High Frequency and Switching
  • Capacitance: 3300 pF
  • Tolerance: ±5%
  • Mounting Type: Through-Hole
  • Package/Case: Radial
  • Voltage Rating (AC): 424V AC
  • Voltage Rating (DC): 1600V DC
  • Length: 0.709 inches
  • Width: 0.295 inches
  • Height (Seated): 0.630 inches
  • Lead Spacing: 0.591 inches
  • Dielectric Material: Polypropylene (PP) and Metallized
