Same model may have multiple batches, images only for reference.

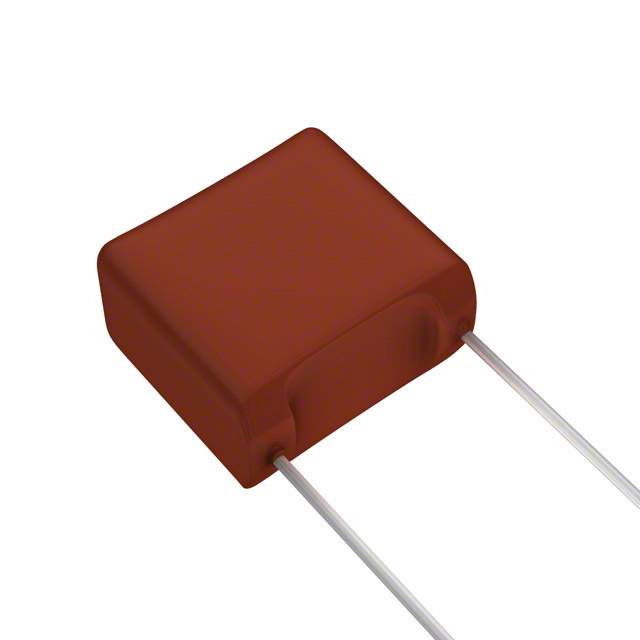

ECW-F2W155JA Real Image
Same model may have multiple batches, images only for reference.

ECW-F2W155JA

Part No ECW-F2W155JA
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 1.5UF 5% 450VDC RADIAL / 1.5 µF Film Capacitor 84V 450V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-F(A)
Package Bulk
Capacitance 1.5 µF
Tolerance ±5%
Voltage Rating - AC 84V
Voltage Rating - DC 450V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.740" L x 0.421" W (18.80mm x 10.70mm)
Height - Seated (Max) 0.681" (17.30mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching
Base Product Number ECW-F2
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1338456-ECW-F2W155JA
Ultra Librarian 3D Model Ultra Librarian ECW-F2W155JA CAD Model

Description

The Panasonic Electronic Components ECW-F2W155JA is a film capacitor that is used for high-frequency and switching applications.

  • Capacitance: 1.5 µF
  • Voltage Rating - AC: 84V
  • Voltage Rating - DC: 450V
  • Tolerance: ±5%
  • Lead Spacing: 0.591" (15.00mm)
  • Dielectric Material: Polypropylene (PP), Metallized
  • Packaging: Bulk
  • Standard Package: 100
  • Size / Dimension: 0.740" L x 0.421" W (18.80mm x 10.70mm)
  • Package / Case: Radial
  • Operating Temperature: -40°C ~ 105°C
