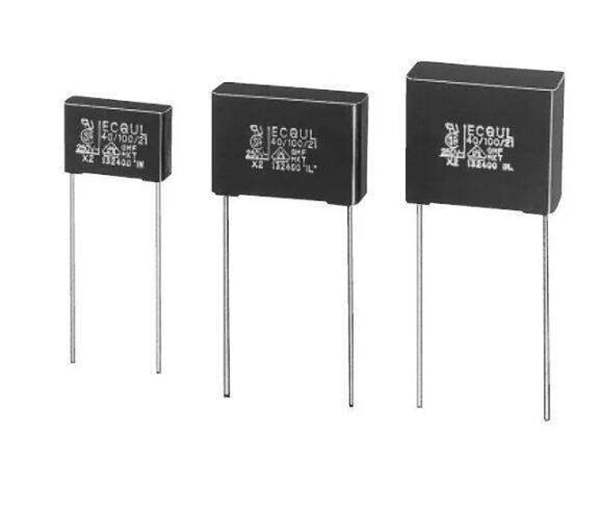

ECQ-U2A153KLPanasonic Electronic Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Category Capacitors Film Capacitors
Packaging  Bulk
Part Status Obsolete
Capacitance 0.015 µF
Tolerance ±10%
Voltage Rating - AC 275V
Operating Temperature -40°C ~ 100°C
Mounting Type Through Hole
Size / Dimension 0.591" L x 0.197" W (15.00mm x 5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination PC Pins
Lead Spacing 0.492" (12.50mm)
Win Source Part Number WS1306014-ECQ-U2A153KL
Ultra Librarian 3D Model Ultra Librarian ECQ-U2A153KL CAD Model

Description

0.015 µF Film Capacitor 275V Polyester, Metallized Radial
