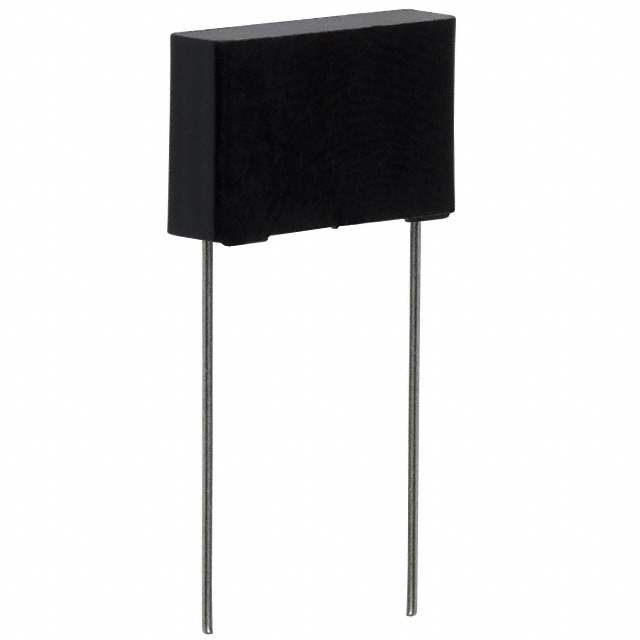

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 0.1μF
Tolerance ±20%
Voltage Rating - AC 275V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Dimension 0.689" L x 0.217" W (17.50mm x 5.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 108252-ECQ-U2A104ML
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-U2A104ML CAD Model

Description

Product Overview

The ECQ-U2A104ML is a dependable film capacitor widely used in electronic circuits for its high-quality performance and energy efficiency.

Features and Benefits

  • Environmental Safety: Complies with eco-friendly standards due to its lead-free and halogen-free manufacturing.
  • Energy Efficiency: Optimized for low power consumption, aiding in energy-saving projects.
  • High Capacitance: Provides significant capacitance, suitable for smoothing and filtering applications.
  • High-Temperature Endurance: Capable of withstanding high temperatures without performance degradation.

Applications

  • Renewable energy systems
  • Inverter circuits
  • Audio equipment
  • Power electronics
