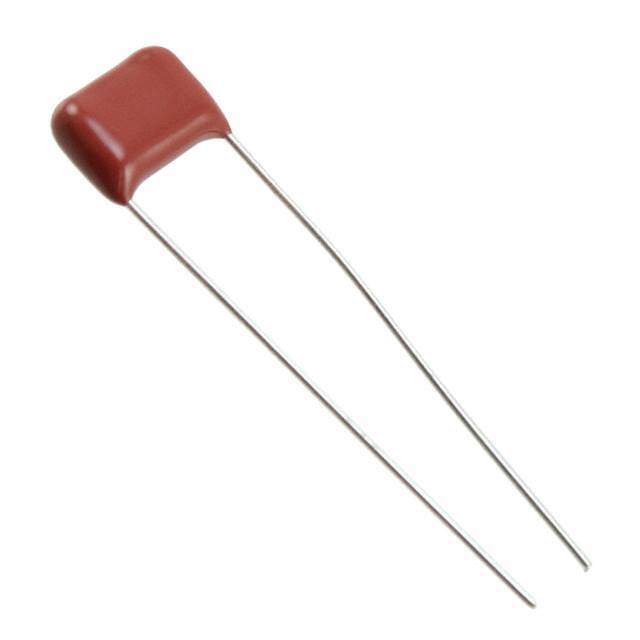

ECQ-E2473JF3 Real Image
Same model may have multiple batches, images only for reference.

ECQ-E2473JF3

Part No ECQ-E2473JF3
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.047UF 5% 250VDC RAD / 0.047 µF Film Capacitor 250V Polyester, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECQ-E(F)
Package Tape & Box (TB)
Capacitance 0.047 µF
Tolerance ±5%
Voltage Rating - DC 250V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.406" L x 0.177" W (10.30mm x 4.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications General Purpose
Base Product Number ECQ-E2473
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Other Names ECQE2473JF3
Standard Package 1,000
Win Source Part Number 1167925-ECQ-E2473JF3
Ultra Librarian 3D Model Ultra Librarian ECQ-E2473JF3 CAD Model

Description

The ECQ-E2473JF3 is a film capacitor manufactured by Panasonic Electronic Components.

  • Series: ECQ-E(F)
  • Application: General purpose
  • Capacitance: 0.047 μF
  • Tolerance: ±5%
  • Voltage Rating: 250V DC
  • Dielectric Material: Polyester, metallized
  • Mounting Type: Through-hole
  • Package/Case: Radial
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.406" L x 0.177" W (10.30mm x 4.50mm)
  • Standard Package: 1,000
