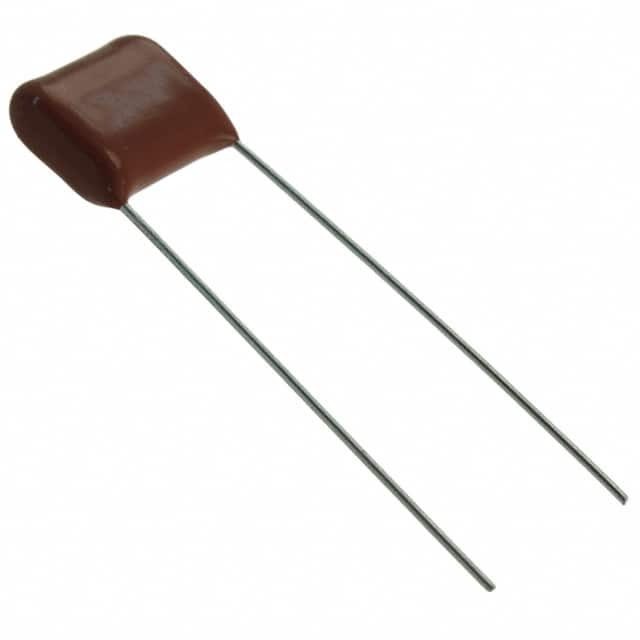

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic
Series ECQ-E(F)
Package Bulk
Product Status Active
Capacitance 0.18 µF
Tolerance ±5%
Voltage Rating - AC 150V
Voltage Rating - DC 250V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.472" L x 0.197" W (12.00mm x 5.00mm)
Height - Seated (Max) 0.445" (11.30mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications General Purpose
Base Product Number ECQ-E2184
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 917783-ECQ-E2184JF
Ultra Librarian 3D Model Ultra Librarian ECQ-E2184JF CAD Model

Description

The ECQ-E2184JF is a film capacitor from Panasonic.

  • Applications: General-purpose
  • Capacitance: 0.18 µF
  • Tolerance: ±5%
  • Material: Polyester and metallized
  • Voltage Rating: 150V AC and 250V DC
  • Package: Radial case
  • Mounting: Through-hole
  • Size: 0.472" L x 0.197" W (12.00mm x 5.00mm)
  • Height: 0.445" (11.30mm)
  • Operating Temperature Range: -40°C to 105°C
  • Status: Active
  • Standard Package: 100 pieces
  • Ideal for: applications in power supplies, lighting, motor control, and audio equipment
