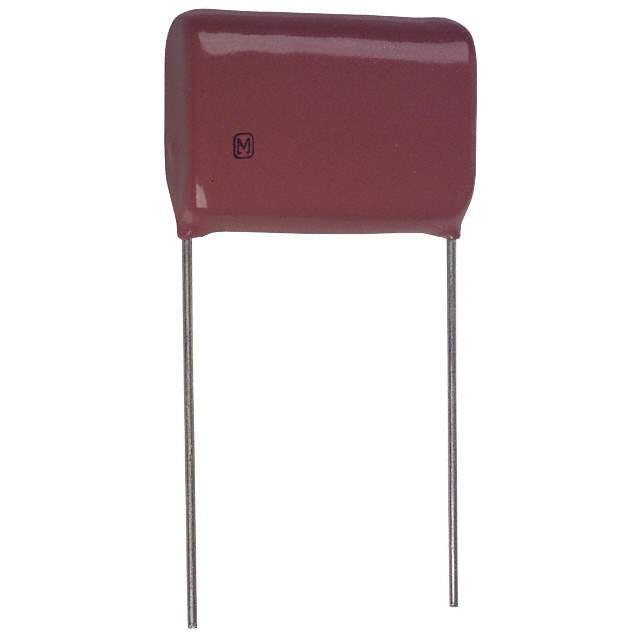

ECQ-E1685KF Real Image
Same model may have multiple batches, images only for reference.

ECQ-E1685KF

Part No ECQ-E1685KF
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 6.8UF 10% 100VDC RADIAL  /  6.8 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECQ-E(F)
Package Bulk
Capacitance 6.8 µF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.024" L x 0.354" W (26.00mm x 9.00mm)
Height - Seated (Max) 0.768" (19.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Base Product Number ECQ-E1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names EF1685-NDR,EF1685,ECQE1685KF
Standard Package 100
Win Source Part Number 1056789-ECQ-E1685KF
Ultra Librarian 3D Model Ultra Librarian ECQ-E1685KF CAD Model

Description

The Panasonic Electronic Components ECQ-E1685KF is a film capacitor that has a capacitance of 6.8 µF with a tolerance of ±10%.

  • Voltage Rating - AC: It has a voltage rating of 63V AC
  • Voltage Rating - DC: and 100V DC
  • Mounting: and is mounted using through-hole technology.
  • Package/Case: The capacitor has a radial package/case
  • Dimension: and has a dimension of 1.024" L x 0.354" W (26.00mm x 9.00mm).
  • Temperature Range: It has a temperature range of operation of -40°C to 105°C.
  • MSL: and has no MSL level specified.
