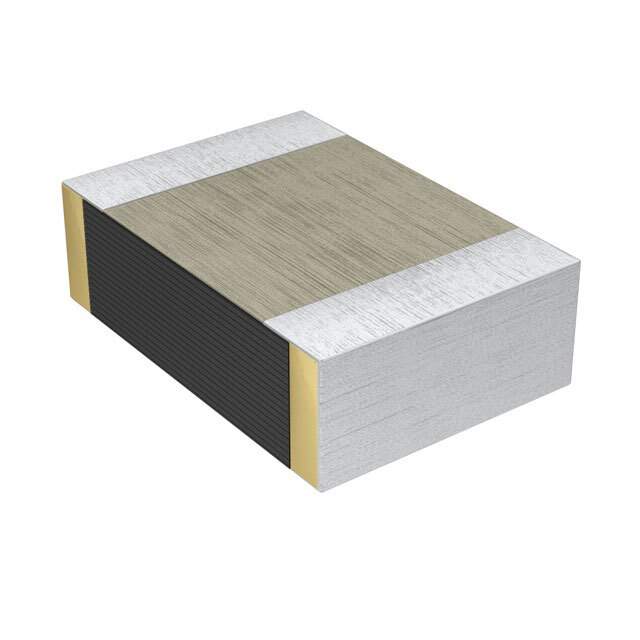

The Panasonic ECHU1H563JX9 is a metallized film capacitor designed for general-purpose applications requiring stable performance and a compact footprint.

Applications:

• Bypass capacitors in electronic circuits
• DC blocking in audio equipment
• Filtering in signal processing
• Timing circuits
• General coupling and decoupling

Features:

• Capacitance: 56000pF (563): Provides a larger capacitance value for various applications.
• Voltage Rating: 50V DC: Suitable for many low-voltage circuits.
• Tolerance: ±5%: Offers good accuracy for general use.
• Surface Mount Device (SMD): Enables automated assembly and compact designs.
• Operating Temperature Range: -40°C to +85°C: Suitable for a range of operating environments.
• RoHS Compliant: Complies with environmental regulations.

Benefits:

• Stable Performance: Metallized film construction ensures consistent behavior over time and temperature.
• Compact Size: SMD package saves board space.
• Reliable Operation: Designed for long-term reliability.
• Easy Assembly: SMD package simplifies manufacturing.
• Versatile: Suitable for a broad range of electronic applications.

Additional Details:

The ECHU1H563JX9 utilizes a metallized film dielectric, providing excellent stability and low losses. Its compact surface-mount design makes it ideal for modern electronic devices where space is limited. The capacitor is well-suited for applications such as filtering, bypass, and DC blocking. The ±5% tolerance ensures adequate performance for general-purpose applications. It is commonly used in consumer electronics, industrial equipment, and automotive systems.
