Same model may have multiple batches, images only for reference.

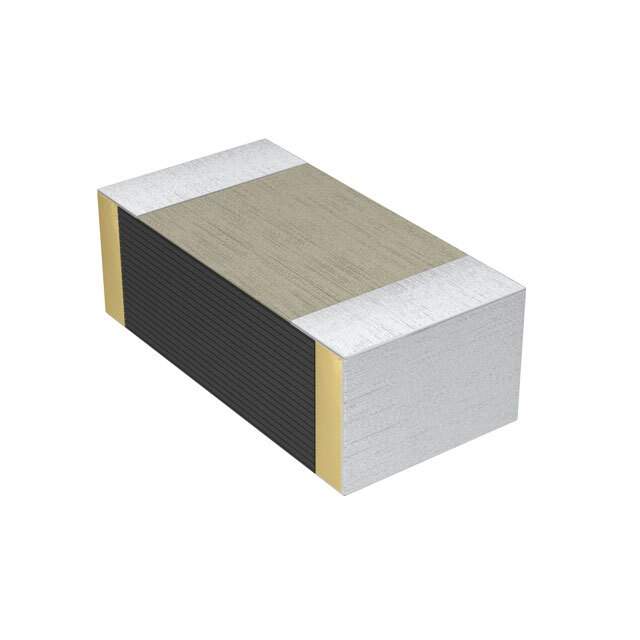

ECH-U1H822GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H822GX5

Part No ECH-U1H822GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 8200PF 2% 50VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 12 Weeks
Features Film Capacitor 30V 50V Polyphenylene Sulfide (PPS), Metallized - Stacked 1206 (3216 Metric)
Manufacturer Panasonic
Series ECH-U(X)
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number PCF1307TR-NDR, ECHU1H822GX5, PCF1307TR, PCF1307CT, PCF1307DKR, Q7161875A, PCF1307CT-NDR
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870043-ECH-U1H822GX5
Ultra Librarian 3D Model Ultra Librarian ECH-U1H822GX5 CAD Model

Description

The Panasonic ECH-U1H822GX5 is a film capacitor with a series of ECH-U(X).

  • Series: ECH-U(X)
  • Operating Temperature Range: -55°C to 125°C
  • Package: 1206 (3216 Metric)
  • Mounting: Surface Mount
  • Packaging: Reel-TR
  • Supply and Demand Status: Limited
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 12 weeks
  • REACH: REACH unaffected
