Same model may have multiple batches, images only for reference.

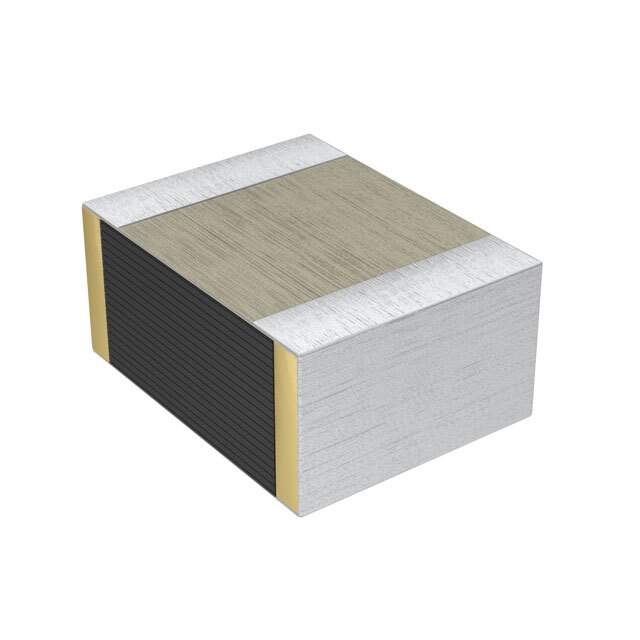

ECH-U1C563JX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1C563JX5

Part No ECH-U1C563JX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.056UF 5% 16VDC 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 12 Weeks
Features Film Capacitor 11V 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric)
Manufacturer Panasonic
Series ECH-U(X)
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1210 (3225 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number PCF1205CT, ECHU1C563JX5, PCF1205CT-NDR, PCF1205DKR-NDR, PCF1205TR, PCF1205DKR, PCF1205TR-NDR
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870031-ECH-U1C563JX5
Ultra Librarian 3D Model Ultra Librarian ECH-U1C563JX5 CAD Model

Description

The Panasonic ECH-U1C563JX5 is a film capacitor that has a capacitance of 11V 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric).

  • Capacitance: 11V 16V
  • Material: Polyphenylene Sulfide (PPS), Metallized - Stacked
  • Package: 1210 (3225 Metric)
  • Package Type: reel-TR
  • Units per Package: 2000
  • Popularity Rating: Medium
  • Supply and Demand Status: Limited
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 12 weeks
  • REACH: REACH unaffected
  • HTSUS: 8532.25.0010
