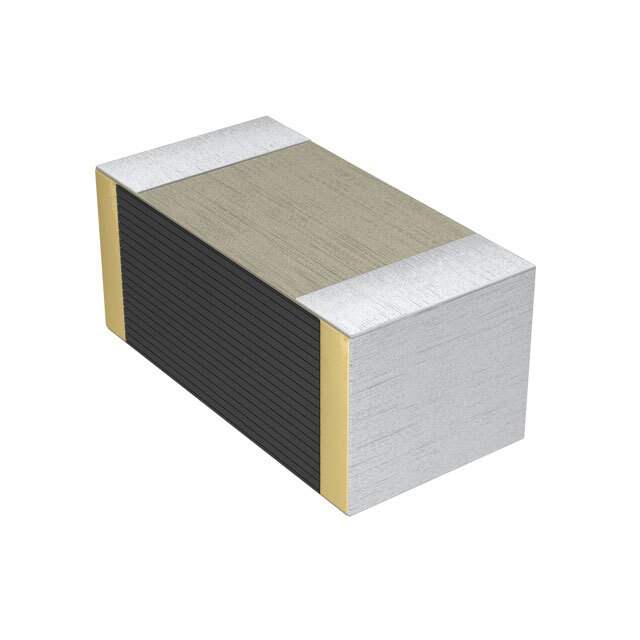

ECH-U1C152GX5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 1500pF
Tolerance ±2%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 109794-ECH-U1C152GX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C152GX5 CAD Model

Description

Overview of ECH-U1C152GX5

The ECH-U1C152GX5 is a versatile capacitor suitable for a wide range of applications. It offers a high degree of reliability, precision, and energy efficiency tailored for modern electronic innovations.

Features and Benefits

  • Precision manufacturing for high reliability
  • Extended temperature range performance
  • Low dielectric absorption

Applications

  • Data communication equipment
  • Instrumentation and measurement devices
  • Renewable energy systems

This model is versatile enough to adapt to various demands, providing consistent performance in a multitude of settings.
