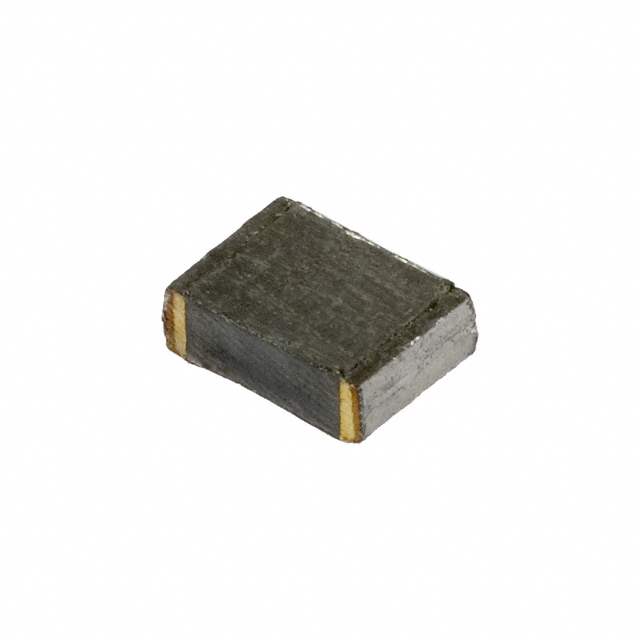

ECH-U1C104JB5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 119007-ECH-U1C104JB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1C104JB5 CAD Model

Description

Product Overview

The ECH-U1C104JB5 stands out for its robust performance parameters, ensuring optimal functionality in diverse operating conditions. Its high-quality design caters to professional and industrial applications.

Features and Benefits

  • Broad operational temperature range.
  • Maintains integrity under pressure.
  • Low inductance for rapid response times.
  • Environmentally friendly materials.

Applications

  • Computer systems.
  • Instrumentation and test equipment.
  • Automated manufacturing systems.
  • Power management circuits.

Additional Details

It is engineered to support high-performance computing and automation, advancing both innovation and reliability.
