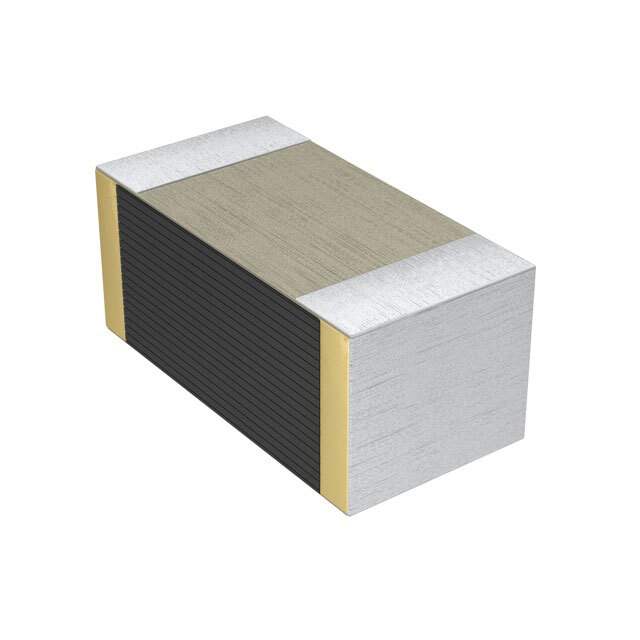

ECH-U1C102JX5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 1000pF
Tolerance ±5%
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 103245-ECH-U1C102JX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1C102JX5 CAD Model

Description

Product Description for ECH-U1C102JX5

The ECH-U1C102JX5 is designed for applications requiring compact size and robust performance, suitable for a variety of electronic environments. Its careful engineering ensures optimal performance even in challenging conditions.

Applications/Projects:

  • Power Electronics
  • Communication Systems
  • Microcontrollers
  • Automated Test Equipment

Features and Benefits:

  • Exceptional durability in high-stress environments
  • Minimal power loss enhancing efficiency
  • Broad temperature range tolerance
  • Highly compact for design flexibility

The ECH-U1C102JX5 capacitor provides dependable support for innovative electronic solutions, making it a critical component in the designer's toolkit.
