Same model may have multiple batches, images only for reference.

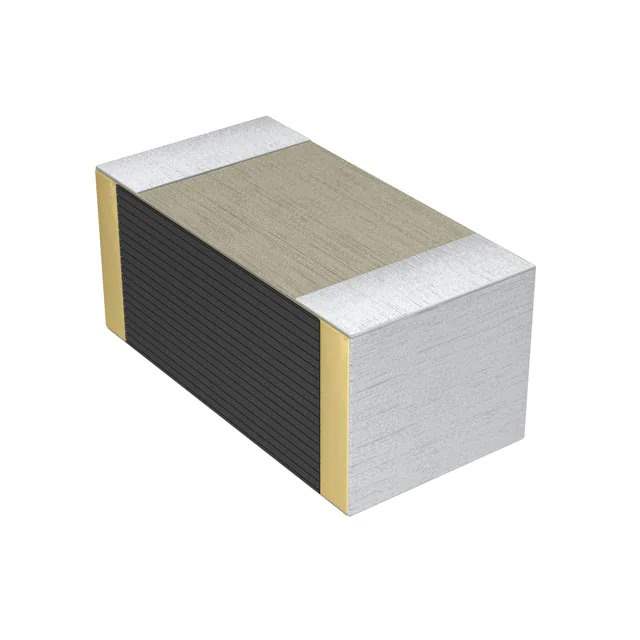

ECH-U1C101GX5 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1C101GX5

Part No ECH-U1C101GX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 100PF 2% 16VDC 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic
Series ECH-U(X)
Package Tape & Reel
Product Status Active
Capacitance 100 pF
Tolerance ±2%
Voltage Rating - AC 11V
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECH-U1
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 587957-ECH-U1C101GX5
Ultra Librarian 3D Model Ultra Librarian ECH-U1C101GX5 CAD Model

Description

The ECH-U1C101GX5 is a film capacitor from Panasonic. It belongs to the ECH-U(X) series and is designed for general-purpose applications.

  • Series: ECH-U(X)
  • Capacitance: 100 pF
  • Tolerance: ±2%
  • Voltage Rating (DC): 16V
  • Voltage Rating (AC): 11V
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.033" (0.85mm)
  • Mounting Type: Surface Mount
  • Termination: Solder Pads
  • Material: Polyphenylene Sulfide (PPS)
  • Construction: Metallized-Stacked
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape & Reel
  • Standard Package Quantity: 4,000 pcs
  • Status: Active
  • REACH: Unaffected
