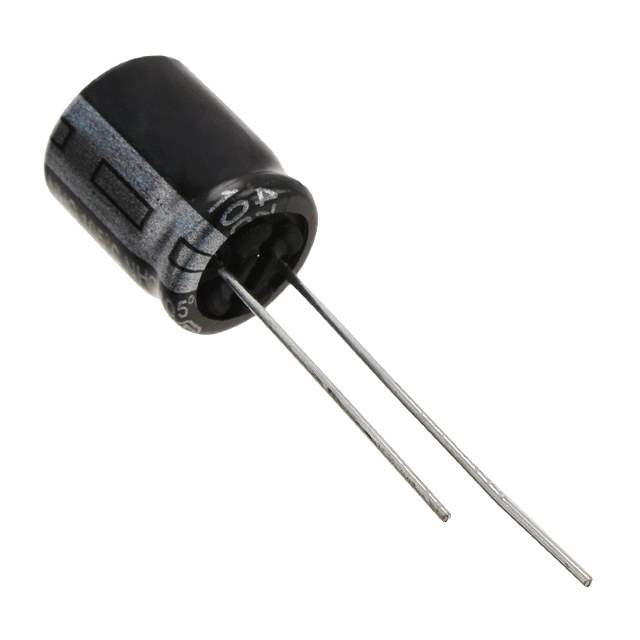

ECA-2AHG101 Real Image
Same model may have multiple batches, images only for reference.

ECA-2AHG101

Part No ECA-2AHG101
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V RADIAL / Cap Aluminum Lytic 100uF 100V 20% (10 X 20mm) Radial 5mm 265mA 2000h 105°C Automotive Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series NHG
Packaging Bulk
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 100V
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 265mA @ 120Hz
Ripple Current - High Frequency 397.5mA @ 100kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.866" (22.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 773643-ECA-2AHG101
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Family Name NHG
Introduction Date September 14, 2000
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ECA-2AHG101 CAD Model

Description

The Panasonic Electronic Components ECA-2AHG101 capacitor is a high-quality, general-purpose capacitor that is ideal for a wide range of applications.

  • Capacitance: 100μF
  • Voltage Rating: 100V
  • Series: NHG
  • Package: Radial, Can
  • ESR: Low
  • Lifetime: 2000 hours @ 105°C
