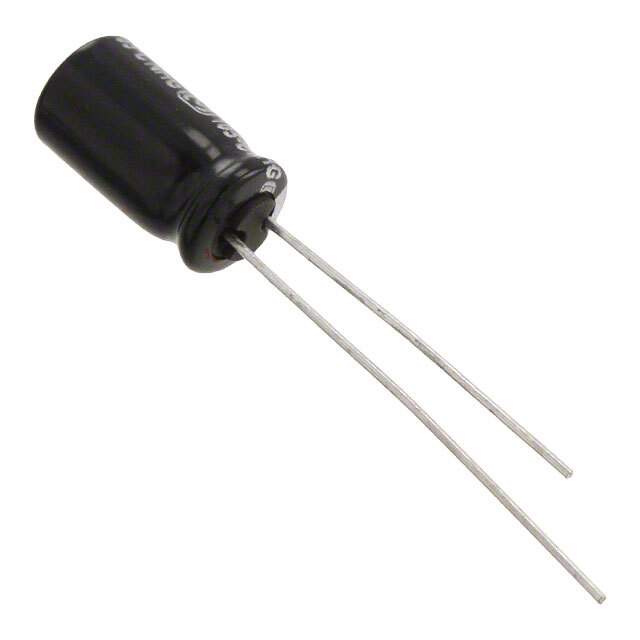

Same model may have multiple batches, images only for reference.

ECA-1VHG101

Name: ECA-1VHG101
Brand: Panasonic
SKU: 1034199
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-1VHG101
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V RADIAL / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	150 mA @ 120 Hz
Ripple Current @ High Frequency	225 mA @ 100 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.480" (12.20mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1VH
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECA1VHG101,Q6758717C,P5551
Standard Package	200
Win Source Part Number	1034199-ECA-1VHG101
Ultra Librarian 3D Model	Ultra Librarian ECA-1VHG101 CAD Model

Description

The Panasonic Electronic Components' ECA-1VHG101 capacitor is a radial, can type with a capacitance of 100 µF and a voltage rating of 35 V.

Capacitance: 100 µF
Voltage Rating: 35 V
Tolerance: ±20%
Height: 0.480 inches
Lifetime: 1000 hours @ 105°C
Polarization: Polarized
Application: General-Purpose
Ripple Current: 150 mA @ 120 Hz and 225 mA @ 100 kHz
Series: NHG-A
Packaging: Bulk
