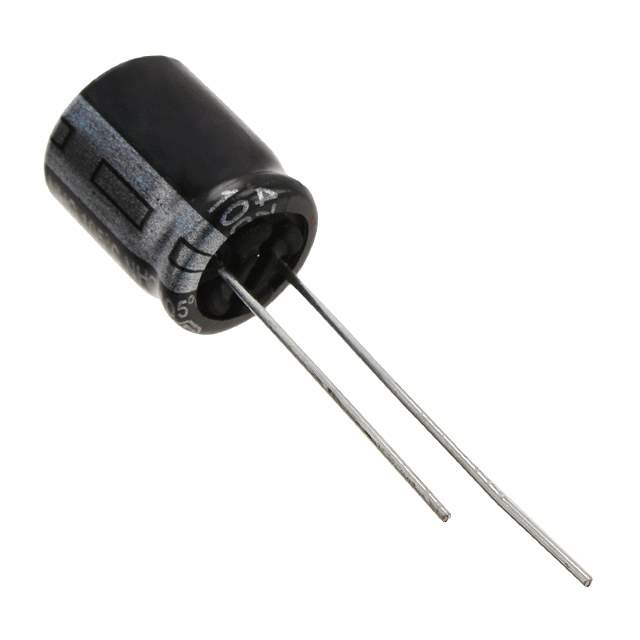

Same model may have multiple batches, images only for reference.

ECA-1JHG221

Name: ECA-1JHG221
Brand: Panasonic
SKU: 1338409
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-1JHG221
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 63V RADIAL / 220 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	335 mA @ 120 Hz
Ripple Current @ High Frequency	502.5 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1JH
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338409-ECA-1JHG221
Ultra Librarian 3D Model	Ultra Librarian ECA-1JHG221 CAD Model

Description

The Panasonic Electronic Components ECA-1JHG221 is an aluminum electrolytic capacitor that has a win source part number of 1338409.

Series: NHG-A
Package: Bulk
Size/Dimension: 0.394" Dia (10.00mm)
Capacitance: 220 µF
Tolerance: ±20%
Voltage Rated: 63 V
Lead Spacing: 0.197" (5.00mm)
Height Seated (Max): 0.669" (17.00mm)
Lifetime @ Temp.: 2000 Hrs @ 105°C
Polarization: Polar
Mounting Type: Through Hole
Package/Case: Radial, Can
Temperature Range: -55°C ~ 105°C
