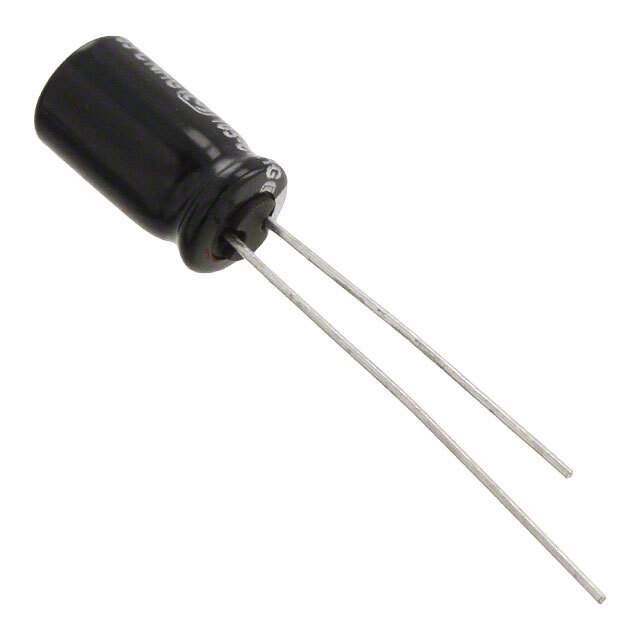

Same model may have multiple batches, images only for reference.

ECA-1HHG470

Name: ECA-1HHG470
Brand: Panasonic
SKU: 1038801
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ECA-1HHG470
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 50V RADIAL / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	NHG-A
Package	Bulk
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	110 mA @ 120 Hz
Ripple Current @ High Frequency	165 mA @ 100 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.480" (12.20mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	ECA-1HH
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	ECA1HHG470,Q2066367,P5570
Standard Package	200
Win Source Part Number	1038801-ECA-1HHG470
Ultra Librarian 3D Model	Ultra Librarian ECA-1HHG470 CAD Model

Description

The Panasonic Electronic Components 1038801-ECA-1HHG470 is an aluminum electrolytic capacitor with a capacitance of 47μF and a rated voltage of 50V.

Capacitance: 47μF
Rated Voltage: 50V
Tolerance: ±20%
Polarization: Polarized
Operating Temperature Range: -55°C to 105°C
Standard Package: 200
ECCN: EAR99
REACH Status: Unaffected
Base Product Number: ECA-1HH
