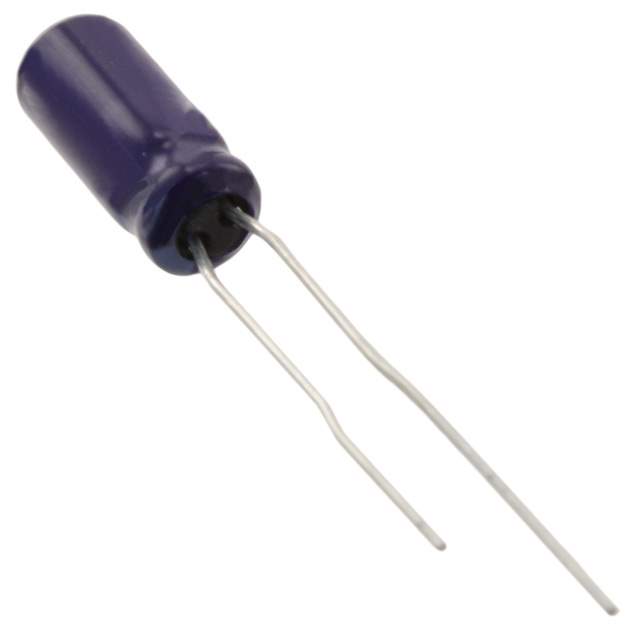

ECA-1EM470 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ High Frequency 221 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1EM
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA1EM470,P5151
Standard Package 200
Win Source Part Number 995662-ECA-1EM470
Ultra Librarian 3D Model Ultra Librarian ECA-1EM470 CAD Model

Description

The Panasonic Electronic Components M-A series ECA1EM470 is a through-hole aluminum electrolytic capacitor with a capacitance of 47 µF and a rated voltage of 25V.

  • Capacitance: 47 µF
  • Rated Voltage: 25V
  • Tolerance: ±20%
  • Ripple Current: 221 mA @ 10 kHz
  • Height: 0.472" (12.00mm)
  • Diameter: 0.197" (5.00mm)
  • Lifetime: 2000 hours @ 85°C
  • Polarization: Polarized
  • Package: Radial, can
  • Lead Spacing: 0.079" (2.00mm)
  • Applications: General purpose
  • Halogen-Free: Compliant
