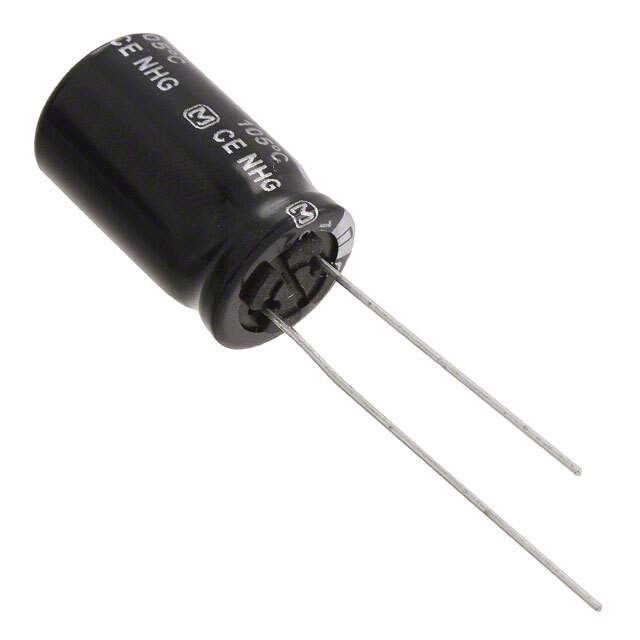

ECA-1EHG222 Real Image
Same model may have multiple batches, images only for reference.

ECA-1EHG222

Part No ECA-1EHG222
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V RADIAL / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series NHG-A
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.09 A @ 120 Hz
Ripple Current @ High Frequency 1.254 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1EH
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P5545,ECA1EHG222,Q2675778
Standard Package 200
Win Source Part Number 1036175-ECA-1EHG222
Ultra Librarian 3D Model Ultra Librarian ECA-1EHG222 CAD Model

Description

The Panasonic Electronic Components ECA-1EHG222 is an aluminum electrolytic capacitor that has a capacitance of 2200 µF.

  • Voltage: The voltage rating of this capacitor is 25V and the tolerance is ±20%.
  • Ripple Current: The ripple current @ low frequency is 1.09 A @ 120 Hz and the ripple current @ high frequency is 1.254 A @ 100 kHz.
  • Dimensions: The height of this capacitor is 1.063" (27.00mm) and the diameter is 0.492" (12.50mm).
  • Package: The product is available in bulk packaging and the standard package quantity is 200.
  • Temperature Range: This capacitor has a temperature range of -55°C to 105°C and has a polarization of polar.
