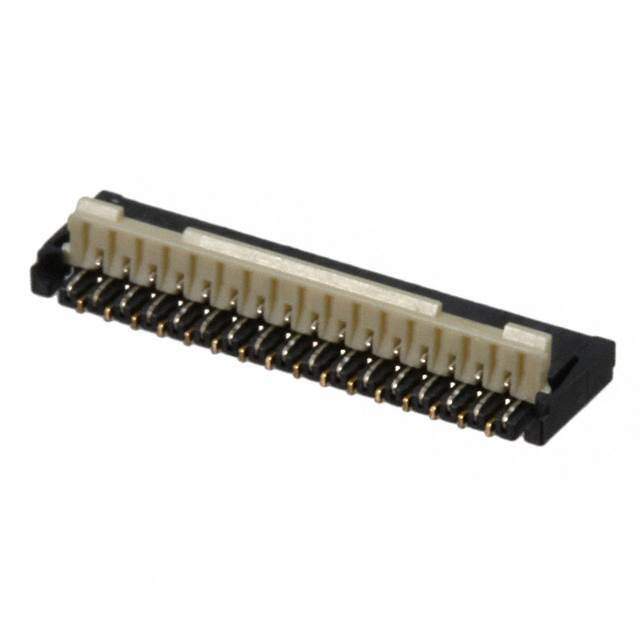

AYF332735A Real Image
Same model may have multiple batches, images only for reference.

AYF332735A

Part No AYF332735A
Manufacturer Panasonic
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 27POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 27
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A per Contact
Contact Finish Thickness Flash
Mating Cycles 20
Win Source Part Number 1021155-AYF332735A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AYF332735A CAD Model

Description

The Panasonic Electric Works FPC connector is a reliable and efficient component for use in electronic devices.

  • Pitch: 0.012" (0.30mm)
  • Termination: solder
  • Voltage Rating: 50V
  • Current Rating: 0.2A per contact
  • Height Above Board: 0.036" (0.90mm)
  • Flat Flex Type: FPC
  • Locking Feature: flip lock and backlock
  • Housing and Actuator Materials: liquid crystal polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Connector Type: surface mount, right-angle
  • Mating Cycle: 20
  • Suitable For: connectors and interconnects
