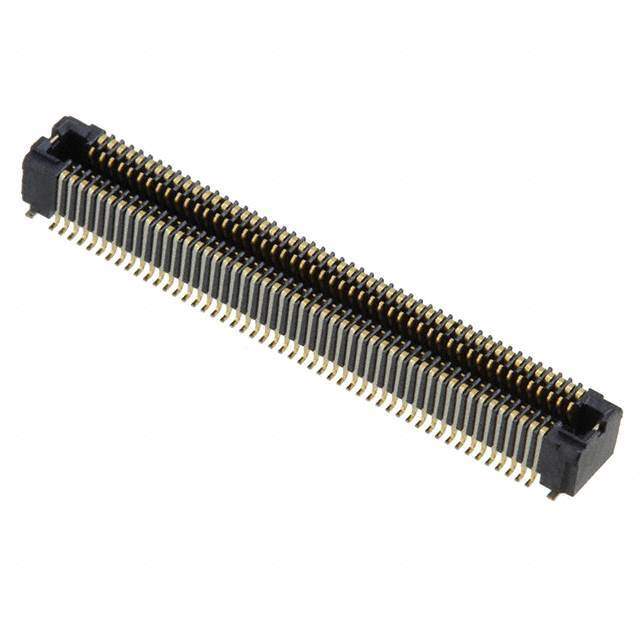

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P4S
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type Socket, Outer Shroud Contacts
Number of Positions 100
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Base Product Number AXT300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 3,000
Win Source Part Number 1042409-AXT300164
Ultra Librarian 3D Model Ultra Librarian AXT300164 CAD Model

Description

The Panasonic AXT300164 is a rectangular connector that is designed for use in various electronic devices.

  • Type: Socket connector
  • Positions: 100
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention features and outer shroud contacts
  • Package: Tape & reel
  • Mated Stacking Height: 1.5mm
  • Mounting: SMD (SMT) technology
  • Contact Finish: Gold
  • Status: Obsolete product
  • Standard Package: 3,000
