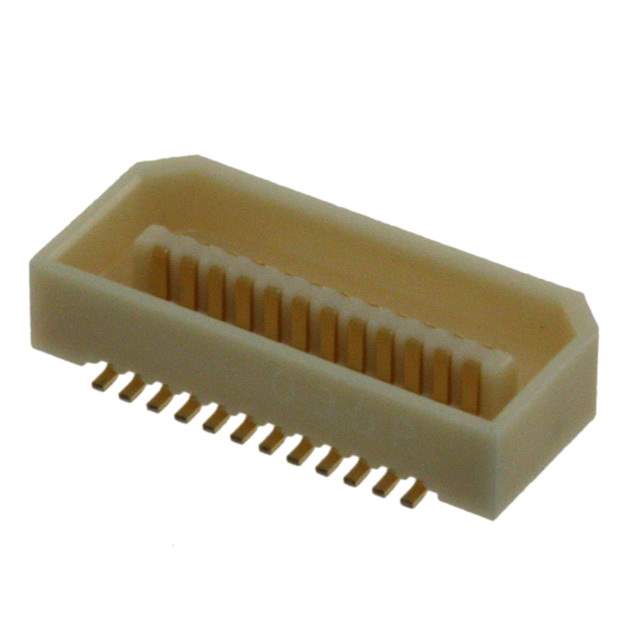

AXN424330S Real Image
Same model may have multiple batches, images only for reference.

AXN424330S

Part No AXN424330S
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 24POS SMD GOLD / 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Panasonic Electric Works
Packaging Tube
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm, 3.5mm, 6mm
Height Above Board 0.107" (2.72mm)
Base Product Number AXN424
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 255-4046-5,AXN424330S-ND
Standard Package 30
Win Source Part Number 1332578-AXN424330S
Ultra Librarian 3D Model Ultra Librarian AXN424330S CAD Model

Description

The Panasonic Electric Works AXN424330S is a rectangular connector array with outer shroud contacts.

  • Packaging Type: Tube
  • Number of Positions: 24
  • Pitch: 0.031" (0.80mm)
  • Features: Board Guide
  • Mounting: Surface Mounted
  • Contact Finish: Gold
  • Mating Stacking Heights: 3mm, 3.5mm, 6mm
  • Height Above Board: 0.107" (2.72mm)
  • Standard Package: 30
  • HTSUS: 8536.69.4040
  • MSL Level: 1 (Unlimited)
  • Status: Obsolete
