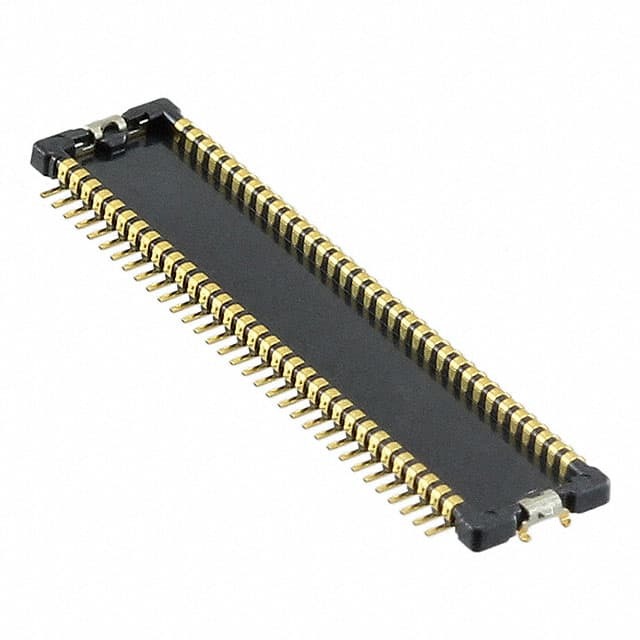

AXK8L66124BG
Same model may have multiple batches, images only for reference.

AXK8L66124BG

Part No AXK8L66124BG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 66POS SMD GOLD / 66 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
AXK8L66124BG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series F4
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 66
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.025" (0.63mm)
Base Product Number AXK8L66124
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862792-AXK8L66124BG
Ultra Librarian 3D Model Ultra Librarian AXK8L66124BG CAD Model

Description

The AXK8L66124BG is a rectangular connector array from Panasonic's F4 series.

  • Positions: 66
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Contact Finish: Gold
  • Connector Type: Header with outer shroud contacts
  • Rows: Two
  • Mated Stacking Height: 0.9mm
  • Height Above Board: 0.025" (0.63mm)
  • Mounting: Surface mount
  • Packaging: Tape & reel or cut tape
  • Manufacturer: Panasonic
