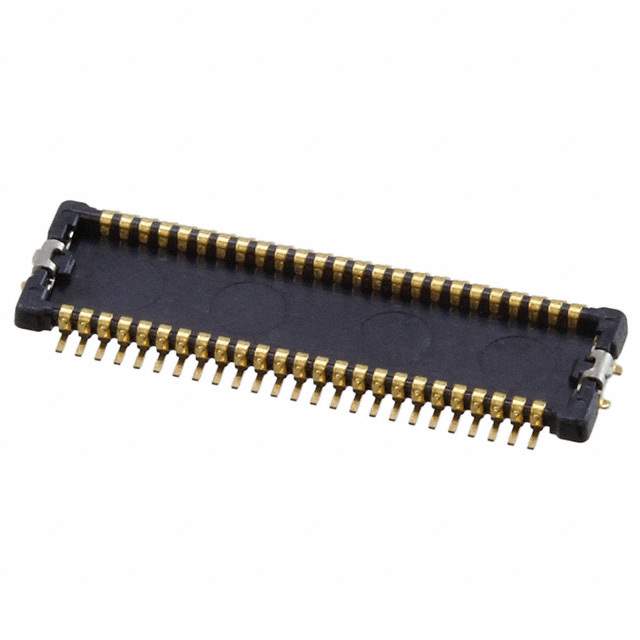

AXK8L50125BG Real Image
Same model may have multiple batches, images only for reference.

AXK8L50125BG

Part No AXK8L50125BG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER FPC .4MM 50POS SMD
Datasheet
AXK8L50125BG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.025" (0.63mm)
Win Source Part Number 1021080-AXK8L50125BG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AXK8L50125BG CAD Model

Description

The Panasonic Electric Works AXK8L50125BG is a 50-position header connector with outer shroud contacts.

  • Positions: 50
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Contact Finish: Gold
  • Mounting Type: Surface Mount (SMD)
  • Height Above Board: 0.025" (0.63mm)
  • Mated Stacking Height: 0.9mm
  • Package: Reel
  • Compliance: Halogen-Free
