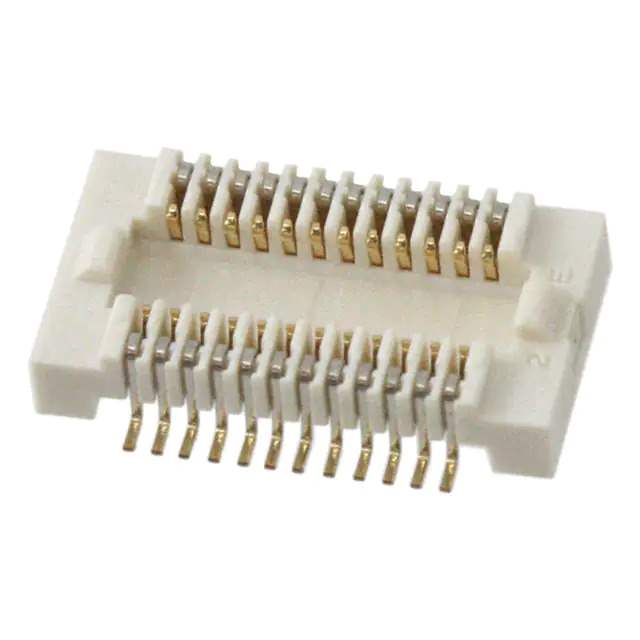

AXK5F22547YG

Name: AXK5F22547YG
Brand: Panasonic
SKU: 912337
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AXK5F22547YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 22POS SMD GOLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	P5KF
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	22
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Mated Stacking Heights	2mm, 2.5mm
Height Above Board	0.073" (1.85mm)
Base Product Number	AXK5F22547
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	912337-AXK5F22547YG
Ultra Librarian 3D Model	Ultra Librarian AXK5F22547YG CAD Model

Description

The Panasonic P5KF series is a versatile rectangular connector array designed for mezzanine board-to-board applications.

Manufacturer: Panasonic
Series: P5KF
Type: Rectangular Connector Array
Application: Mezzanine Board-to-Board
Positions: 22
Pitch: 0.020" (0.50mm)
Connector Type: Socket Outer Shroud Contacts
Contact Finish: Gold
Mounting Type: Surface Mountable
Packaging: Tape & Reel
Mated Stacking Heights: 2mm and 2.5mm
Height Above Board: 0.073" (1.85mm)
Status: Obsolete
Standard Package: 2,000 pcs
Suitable For: Legacy Systems and Replacement Applications
