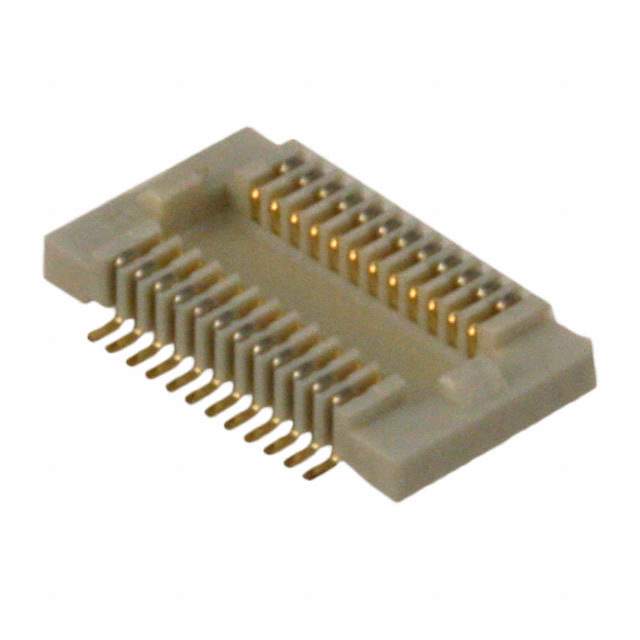

AXK5F20347YG Real Image
Same model may have multiple batches, images only for reference.

AXK5F20347YG

Part No AXK5F20347YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 20POS SMD GOLD / 20 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series P5KF
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Socket, Outer Shroud Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.053" (1.35mm)
Base Product Number AXK5F20347
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names AXK5F20347YG-ND,255-3224-2,255-3224-1
Standard Package 2,000
Win Source Part Number 985946-AXK5F20347YG
Ultra Librarian 3D Model Ultra Librarian AXK5F20347YG CAD Model

Description

The AXK5F20347YG is a rectangular connector array designed for board-to-board connections.

  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Contacts: outer shroud contacts
  • Rows: two
  • Contact Finish: gold
  • Package: tape and reel or cut tape
  • Mated Stacking Height: 1.5mm
  • Height above the Board: 0.053" (1.35mm)
  • Manufacturer: Panasonic Electric Works
  • Series: P5KF
