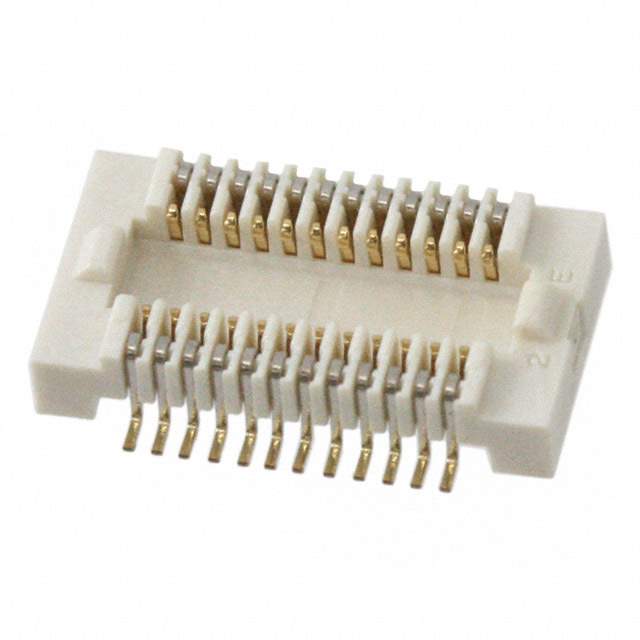

AXK5F12547YG

Name: AXK5F12547YG
Brand: Panasonic
SKU: 806686
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXK5F12547YG
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 12POS SMD GOLD / NARROW-PITCH CONNECTORS FOR BOARD-TO-FPC CONNECTION
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electric Works
Packaging	Reel
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	12
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Style	SMD
Contact Finish	Gold
Mated Stacking Heights	2mm, 2.5mm
Height Above Board	0.073" (1.85mm)
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	806686-AXK5F12547YG
Ultra Librarian 3D Model	Ultra Librarian AXK5F12547YG CAD Model

Alternative Products

Description

The Panasonic Electric Works AXK5F12547YG is a 12-position socket connector with outer shroud contacts. It has a pitch of 0.020 inches (0.50mm) and is SMD mounted.

Positions: 12
Pitch: 0.020 inches (0.50mm)
Mounting: SMD
Rows: 2
Contact Finish: Gold
Mated Stacking Height: 2mm, 2.5mm
Height Above Board: 0.073 inches (1.85mm)
Manufacturer Pack Quantity: 2,000
MSL Level: 1 (Unlimited)
