AXG8240J4
Same model may have multiple batches, images only for reference.

AXG8240J4

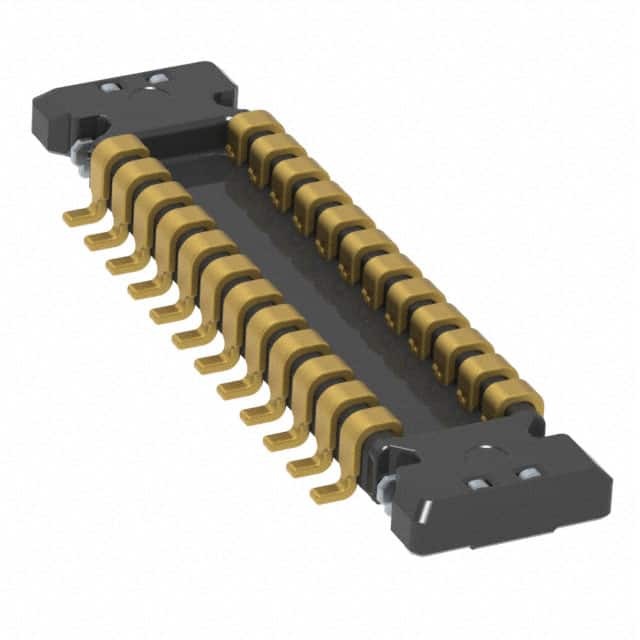

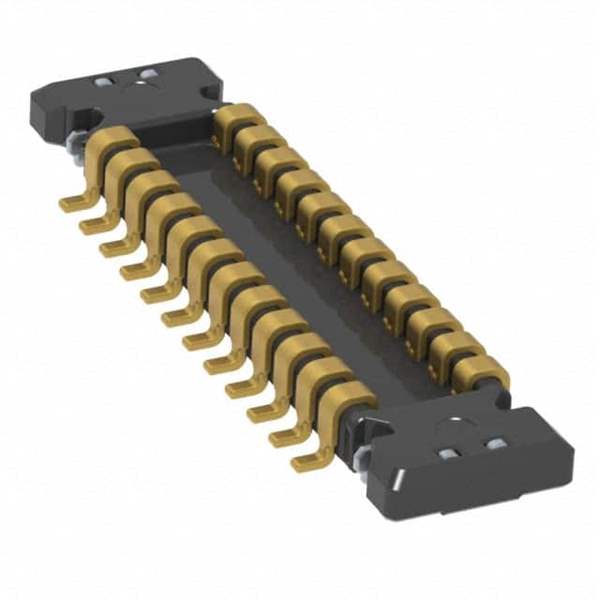

Part No AXG8240J4
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN PLUG 24POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A35US
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 26 (24 + 2 Power)
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.46mm)
Base Product Number AXG824
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862750-AXG8240J4
Ultra Librarian 3D Model Ultra Librarian AXG8240J4 CAD Model

Description

The 862750-AXG8240J4 is a rectangular connector array from Panasonic's A35US series.

  • Positions: 26
  • Contacts: 24 Regular, 2 Power
  • Pitch: 0.014 inches (0.35mm)
  • Type: Edge Type, Mezzanine (board to board)
  • Connector Type: Plug
  • Contacts: Outer Shroud
  • Mounting: Surface Mount
  • Package: Tape & Reel
  • Height Above Board: 0.018 inches (0.46mm)
  • Mated Stacking Height: 0.6mm
  • Feature: Solder Retention
  • Contact Finish: Gold
  • Status: Obsolete
  • Standard Package: 10,000 pieces
