AXG7240J7
Same model may have multiple batches, images only for reference.

AXG7240J7

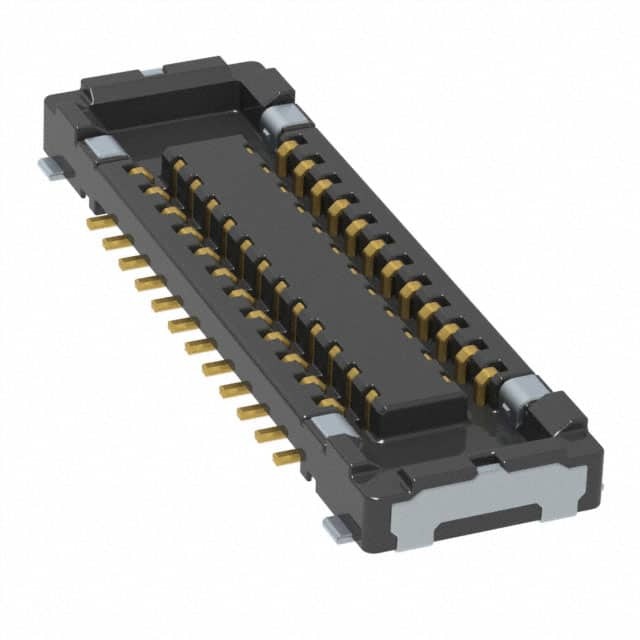

Part No AXG7240J7
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 24POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A35US
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 26 (24 + 2 Power)
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.6mm
Height Above Board 0.023" (0.59mm)
Base Product Number AXG724
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862747-AXG7240J7
Ultra Librarian 3D Model Ultra Librarian AXG7240J7 CAD Model

Description

The Panasonic 862747-AXG7240J7 is a rectangular connector array designed for board-to-board connections.

  • Positions: 26
  • Contacts: 24 Signal, 2 Power
  • Pitch: 0.014" (0.35mm)
  • Feature: Solder Retention
  • Mounting: Surface Mountable
  • Mated Stacking Height: 0.6mm
  • Height Above Board: 0.023" (0.59mm)
  • Contact Finish: Gold Plated
  • Status: Obsolete
