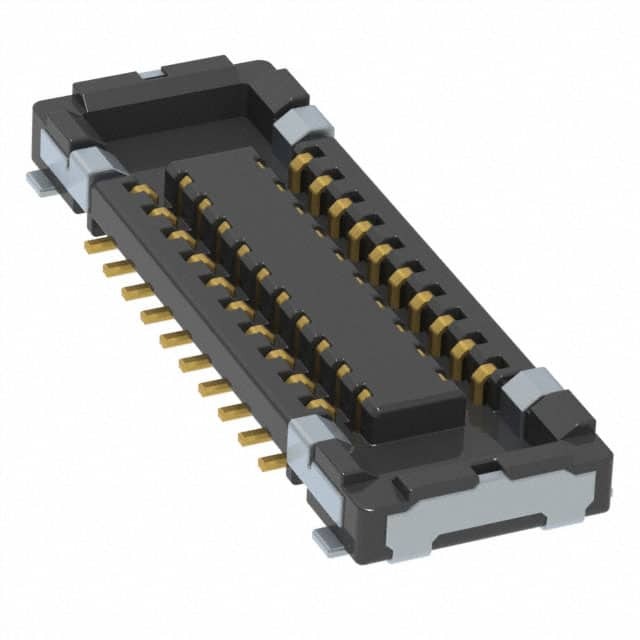

AXG720047

Name: AXG720047
Brand: Panasonic
SKU: 862746
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AXG720047
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 20POS SMD GOLD / 20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Panasonic
Series	A35US
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Socket, Center Strip Contacts
Number of Positions	20
Pitch	0.014" (0.35mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	0.6mm
Height Above Board	0.023" (0.59mm)
Base Product Number	AXG720
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	862746-AXG720047
Ultra Librarian 3D Model	Ultra Librarian AXG720047 CAD Model

Description

The Panasonic AXG720047 is a rectangular connector array with edge type, mezzanine (board to board) configuration.

Positions: 20
Pitch: 0.014" (0.35mm)
Feature: Solder Retention
Connector Type: Socket, Center Strip Contacts
Rows: 2
Contact Finish: Gold
Mounting Type: Surface Mount
Package: Tape & Reel
Standard Package: 10,000 pcs
Mated Stacking Height: 0.6mm
Height Above Board: 0.023" (0.59mm)
Manufacturer: Panasonic
Status: Obsolete
