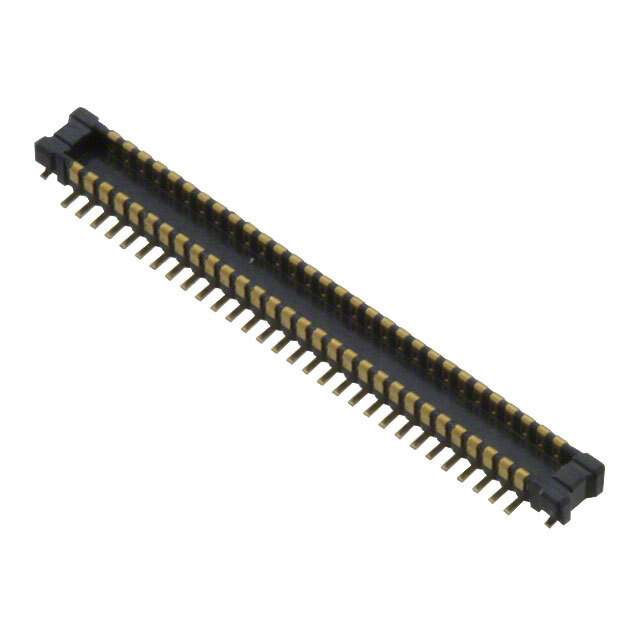

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Style SMD
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.026" (0.65mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805623-AXE660224
Ultra Librarian 3D Model Ultra Librarian AXE660224 CAD Model

Description

The Panasonic Electric Works AXE660224 is a solder retention header connector.

  • Positions: 60
  • Rows: 2
  • Pitch: 0.016" (0.40mm)
  • Mated Stacking Height: 1mm
  • Contact Finish: Gold
  • Height Above Board: 0.026" (0.65mm)
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
