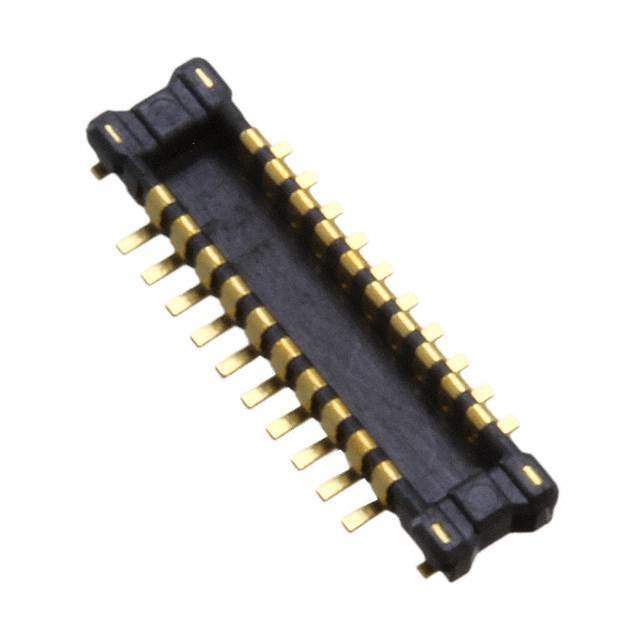

AXE620224 Real Image
Same model may have multiple batches, images only for reference.

AXE620224

Part No AXE620224
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER .4MM 20 POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 20
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020935-AXE620224
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian AXE620224 CAD Model

Description

The Panasonic Electric Works connector is a header with outer shroud contacts.

  • Manufacturer: Panasonic Electric Works
  • Connector Type: header with outer shroud contacts
  • Number of Positions: 20
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Yes
  • Contact Finish: gold
  • Packaging: tube/rail
  • Mounting: surface mount device (SMD)
  • Popularity Status: medium
  • Win Source Part Number: 1020935-AXE620224
