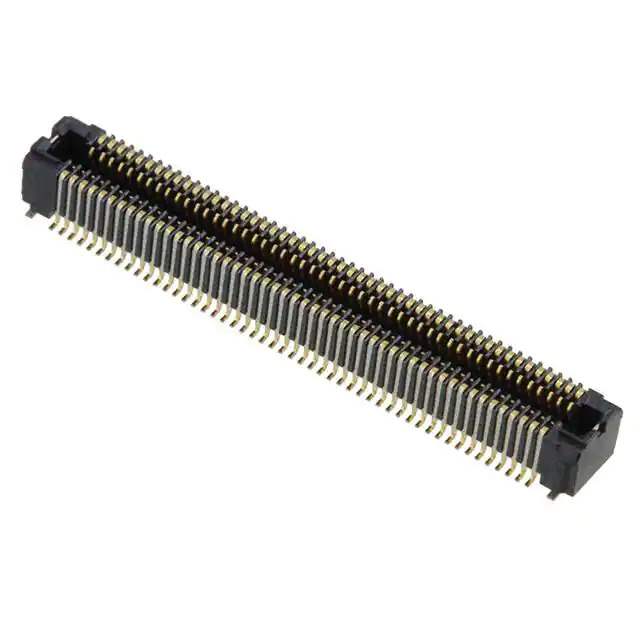

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P4S
Package Tape & Reel
Product Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 100
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Base Product Number AXT300
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 567384-AXT300124
Ultra Librarian 3D Model Ultra Librarian AXT300124 CAD Model

Description

The P4S series connector array, represented by the AXT300124, is a versatile and reliable solution for board-to-board connections in electronic devices.

  • Positions: 100
  • Pitch: 0.016" (0.40mm)
  • Features: Solder retention and gold contact finish
  • Connector Type: Socket with outer shroud contacts
  • Rows: Two
  • Height Above Board: 0.057" (1.45mm)
  • Mounting: Surface mount
  • Manufacturer: Panasonic
  • Standard Package: 3,000 pcs
  • Status: Active
