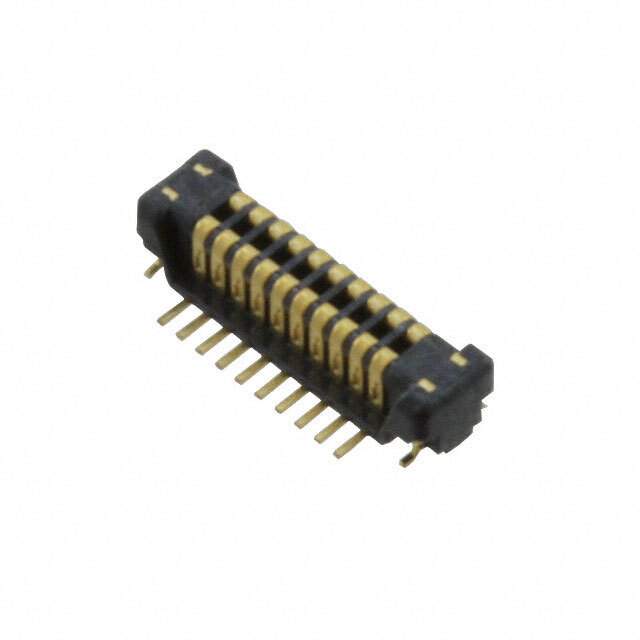

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Win Source Part Number 1021103-AXT424124
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT424124 CAD Model

Description

The Panasonic Electric Works AXT424124 is a connector header with center strip contacts.

  • Number of Positions: 24
  • Pitch: 0.016" (0.40mm)
  • Packaging: Reel-TR
  • Feature: Solder retention
  • Mounting Type: SMD (SMT)
  • Height Above Board: 0.049" (1.25mm)
  • Contact Finish: Gold
  • Mated Stacking Heights: 1.5mm and 2.5mm
  • Quantity per Package: 3k pcs
