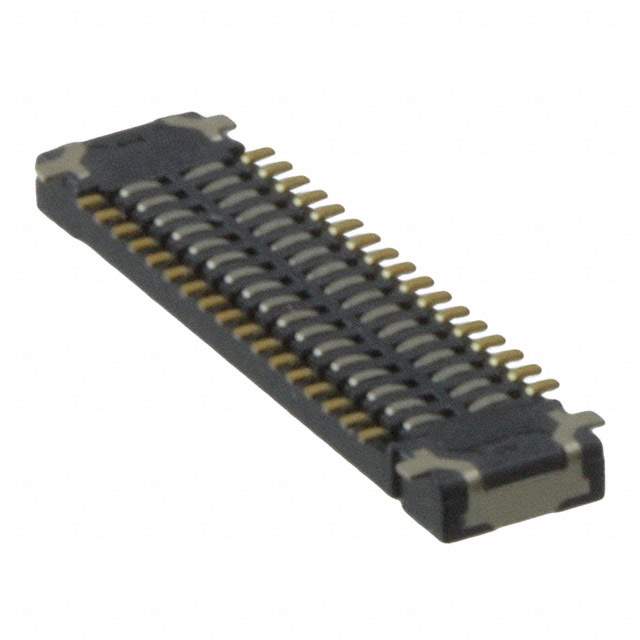

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic Electric Works
Series A4S
Package Tape & Reel
Connector Type Socket, Center Strip Contacts
Number of Positions 34
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.030" (0.75mm)
Base Product Number AXE534
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 255-6144-1,255-6144-2,AXE534127-ND,255-6144-6
Standard Package 5,000
Win Source Part Number 1011518-AXE534127
Ultra Librarian 3D Model Ultra Librarian AXE534127 CAD Model

Description

The Panasonic Electric Works AXE534127 is a connector that is used to connect two circuit boards.

  • Type: edge type connector
  • Positions: 34 positions
  • Designed to: operate at high speed with low power consumption
  • Characteristics: reliable and efficient
  • Compliance: RoHS compliant
  • High Performance: operates in harsh environments and is known for its high performance.
