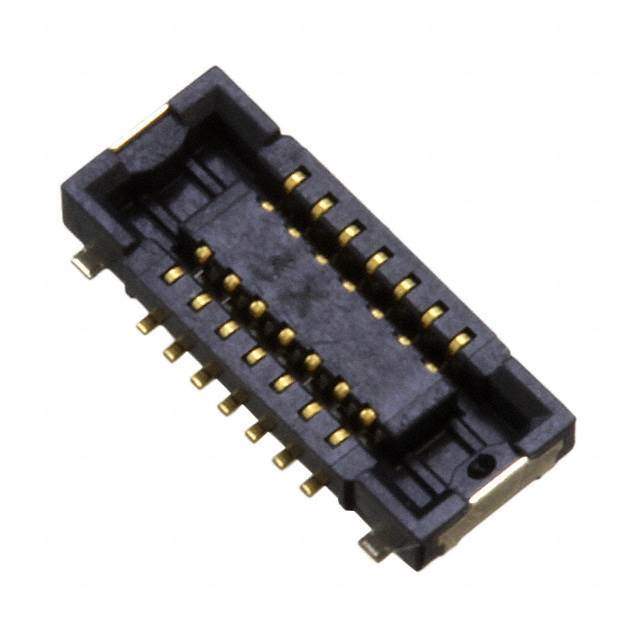

AXE514124

Name: AXE514124
Brand: Panasonic
SKU: 805523
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXE514124
Manufacturer	Panasonic
Catalog	Rectangular Connectors
Description	CONN SOCKET 14POS SMD GOLD / Narrow pitch connectors (0.4mm pitch)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electric Works
Packaging	Reel
Part Status	Obsolete (End Of Life)
Connector Type	Socket, Center Strip Contacts
Number of Positions	14
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Style	SMD
Features	Solder Retention
Contact Finish	Gold
Mated Stacking Heights	0.8mm, 1mm
Height Above Board	0.030" (0.75mm)
Manufacturer Pack Quantity	5,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	805523-AXE514124
Ultra Librarian 3D Model	Ultra Librarian AXE514124 CAD Model

Description

The Panasonic Electric Works 805523-AXE514124 is a socket, center strip contacts connector that is ideal for use in various applications.

Positions: 14
Pitch: 0.016" (0.40mm)
Mounting: Surface mount
Height above board: 0.030" (0.75mm)
Contact plating: Gold
Mated stacking heights: 0.8mm, 1mm
End Of Life: Yes
Supply and Demand: Medium
Manufacturer pack quantity: 5,000
MSL level: 1 (Unlimited)
