AQZ192 Panasonic – Price, Stock & Datasheet

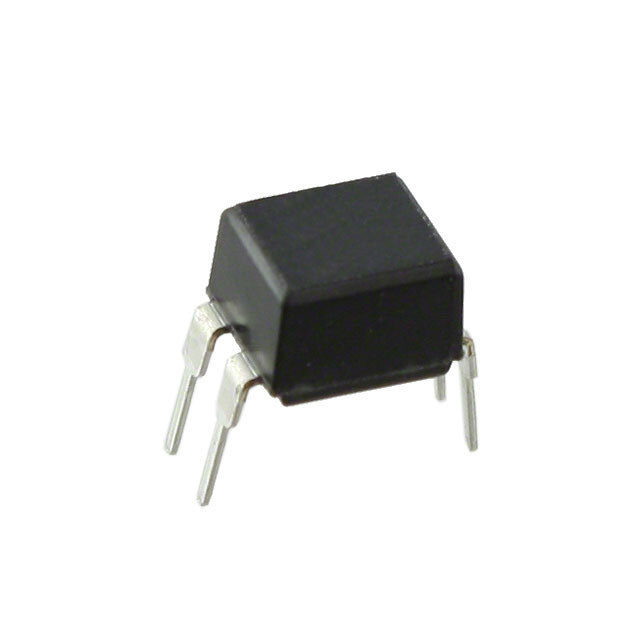

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.35VDC
Voltage - Load 0 V ~ 60 V
Load Current 10 A
On-State Resistance (Max) 15 mOhms
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Case / Package 4-SIP
Supplier Device Package 4-SIL
Approval Agency UR, VDE
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1570333-AQZ192
Ultra Librarian 3D Model Ultra Librarian AQZ192 CAD Model
