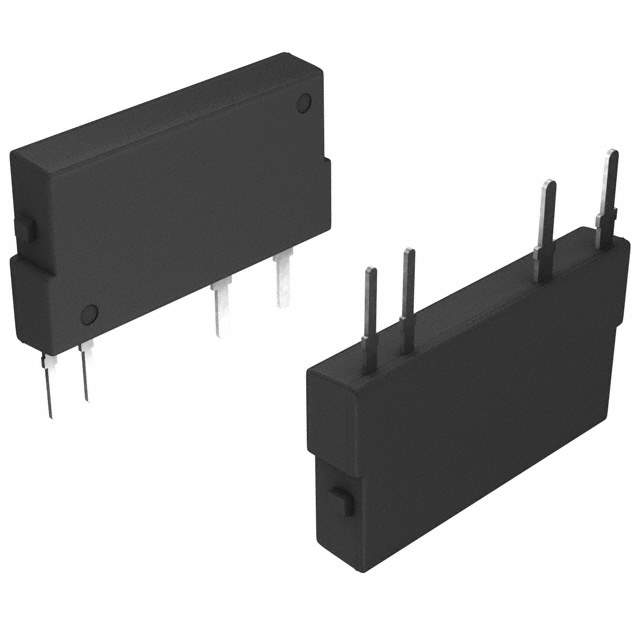

AQZ102 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays
Family Solid State Relays
Manufacturer Panasonic
Series PhotoMOS AQZ
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type DC
On-State Resistance (Max) 90 mOhm
Load Current 4A
Voltage - Input 1.16VDC
Voltage - Load 0 ~ 60 V
Mounting Style Through Hole
Termination Style PC Pin
Package 4-SIP
Manufacturer Device Package 4-SIL
Relay Type Relay
Win Source Part Number 010226-AQZ102
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Communications & Networking, Robotics, Automotive
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian AQZ102 CAD Model

Description

AQZ102

The AQZ102 solid-state relay is innovative and robust, designed to provide seamless control with minimal power loss. It enhances operational efficiency in numerous fields, setting a benchmark for performance and reliability.

  • Features and Benefits:
    • High isolation voltage for safety
    • Minimal power consumption
    • Extended lifespan in rigorous conditions
    • Quick and consistent switching capacity
  • Applications and Projects:
    • HVAC systems
    • Automotive electronics
    • Smart metering solutions
    • Lighting controls
    • Industrial automation

Additional details: Supporting a higher load current capability of 1.2A and voltage of 60V, the AQZ102 ensures optimal operation in various demanding industries, making it a versatile component for a myriad of applications.
