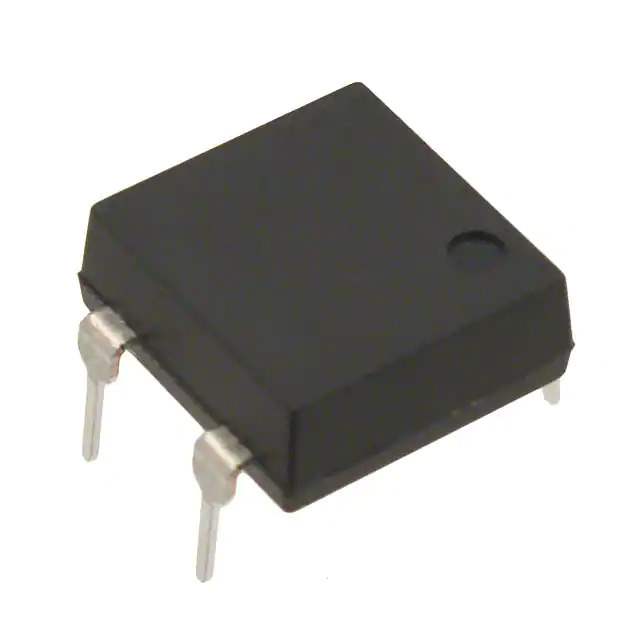

AQY277 Real Image
Same model may have multiple batches, images only for reference.

AQY277

Part No AQY277
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 650MA 0-200V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQY
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.16VDC
Voltage - Load 0 V ~ 200 V
Load Current 650 mA
On-State Resistance (Max) 1.1 Ohms
Termination Style PC Pin
Package / Case 4-DIP (0.400", 10.16mm)
Supplier Device Package 4-DIP
Base Product Number AQY27
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564472-AQY277
Ultra Librarian 3D Model Ultra Librarian AQY277 CAD Model

Description

The Panasonic PhotoMOS AQY277 is a solid-state relay designed for various applications.

  • Termination style: PC pin
  • Package: 4-DIP
  • Voltage input: 1.16VDC
  • Output types: AC and DC
  • Circuit configuration: SPST-NO (1 Form A)
  • On-state resistance: 1.1 Ohms
  • Load current capacity: 650 mA
  • Voltage loads: 0 V to 200 V
  • Mounting: through hole
  • Standard package: 50 pieces
  • Status: active
  • Series: PhotoMOS AQY
