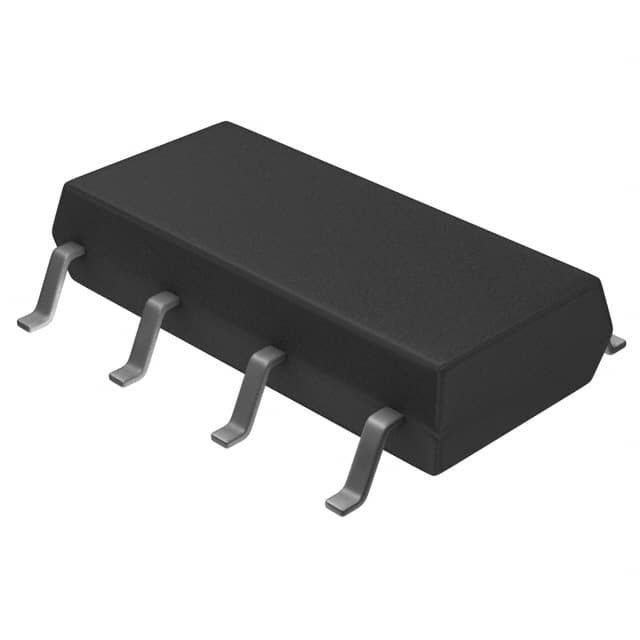

AQW280S
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQW
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 350 V
Load Current 100 mA
On-State Resistance (Max) 25 Ohms
Termination Style Gull Wing
Package / Case 8-SOP (0.173", 4.40mm Width)
Supplier Device Package 8-SOP
Base Product Number AQW280
Standard Package 50 pcs
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 848460-AQW280S
Ultra Librarian 3D Model Ultra Librarian AQW280S CAD Model

Description

The Panasonic PhotoMOS AQW280S is a solid-state relay designed for various applications.

  • Series: PhotoMOS AQW
  • Manufacturer: Panasonic
  • Termination Style: gull wing
  • Package: 8-SOP
  • Voltage Input: 1.14VDC
  • Output Types: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • On-State Resistance: 25 Ohms (limited to)
  • Load Current: 100 mA
  • Voltage Loads: 0 V to 350 V
  • Mounting: surface mount mounting
  • Standard Package: 50 pieces
  • Status: active
