Same model may have multiple batches, images only for reference.

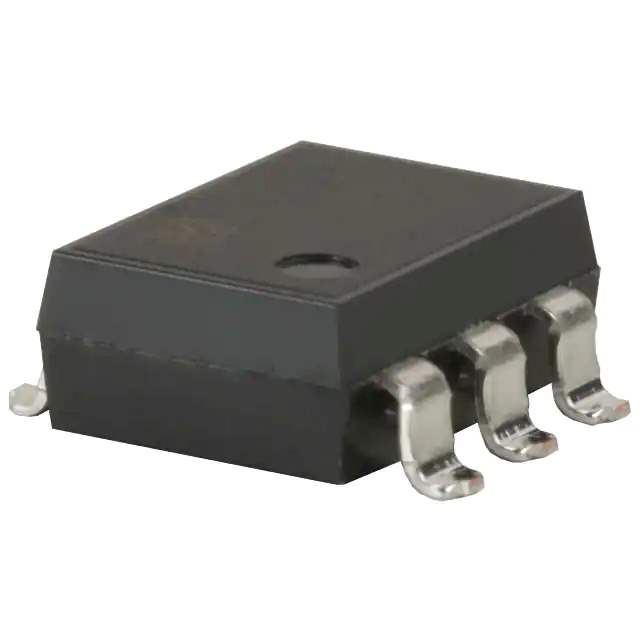

AQV256HA Real Image
Same model may have multiple batches, images only for reference.

AQV256HA

Part No AQV256HA
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 130MA 0-600V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 600 V
Load Current 130 mA
On-State Resistance (Max) 30 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV256
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 861728-AQV256HA
Ultra Librarian 3D Model Ultra Librarian AQV256HA CAD Model

Description

The Panasonic 861728-AQV256HA is a solid state relay in the PhotoMOS AQV series.

  • Termination Style: Gull Wing
  • Package: Tube
  • Input Voltage: 1.14VDC
  • Output Types: AC and DC
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance: 30 Ohms
  • Load Current: 130 mA
  • Voltage Range for Load: 0V to 600V
  • Mounting Type: Surface Mount
  • Package/Case: 6-SMD (0.300", 7.62mm)
  • Supplier Device Package: 6-SMD
  • HTSUS Code: 8536.41.0030
  • Base Product Number: AQV256
