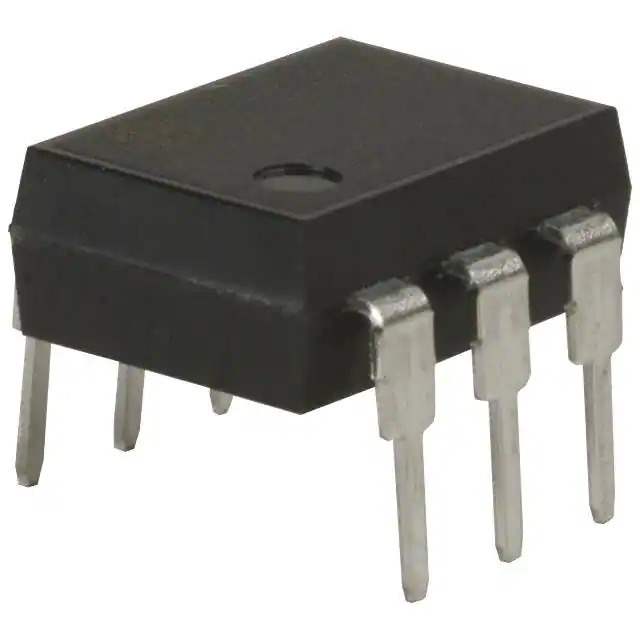

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 50 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number AQV23
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564358-AQV234
Ultra Librarian 3D Model Ultra Librarian AQV234 CAD Model

Description

The AQV234 is a PhotoMOS solid state relay from Panasonic.

  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Input Voltage: 1.14VDC
  • Output Type: AC/DC
  • Circuit Configuration: SPST-NO
  • On-State Resistance: 50 Ohms
  • Load Current: 120 mA
  • Maximum Load Voltage: 400 V
  • Package Type: 6-DIP (0.300", 7.62mm)
  • Status: Active
