Same model may have multiple batches, images only for reference.

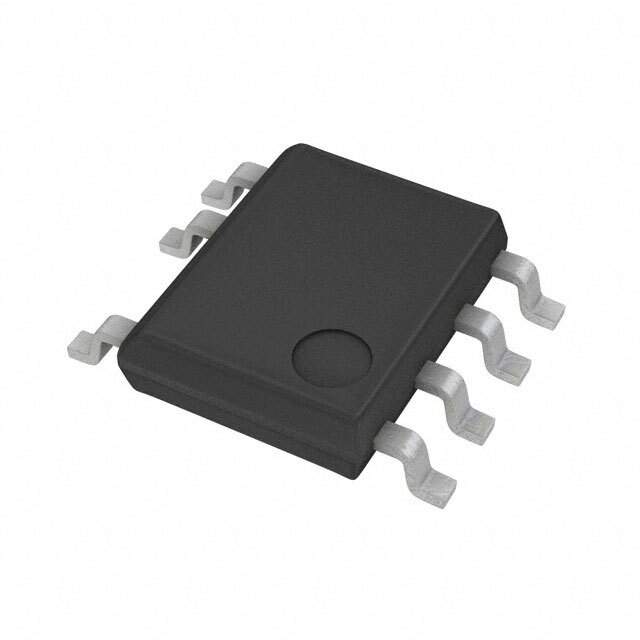

AQH2213AZ Real Image
Same model may have multiple batches, images only for reference.

AQH2213AZ

Part No AQH2213AZ
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR MOD AC TYPE 0.9A 600V ZC SMD / Solid State Relay 50mA 1.3V DC-IN 0.9A 600V AC-OUT 7-Pin DIP SMD T/R
Datasheet
AQH2213AZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series AQ-H
Packaging Reel package
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Load Current 900mA
Voltage - Input 1.21VDC
Voltage - Load 0 ~ 600 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm) 7 Leads
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 768725-AQH2213AZ
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name AQH2213
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQH2213AZ CAD Model

Description

The AQH2213AZ is a high-quality relay from Panasonic Electric Works.

  • Series: AQ-H
  • Termination Style: Gull wing
  • Package: 8-SMD with 7 leads
  • Circuit Configuration: SPST-NO (1 Form A)
  • Output Type: AC, zero-cross
  • Load Current: 900mA
  • Voltage Load: 0-600V
  • Input Voltage: 1.21VDC
  • Relay Type: Solid-state
