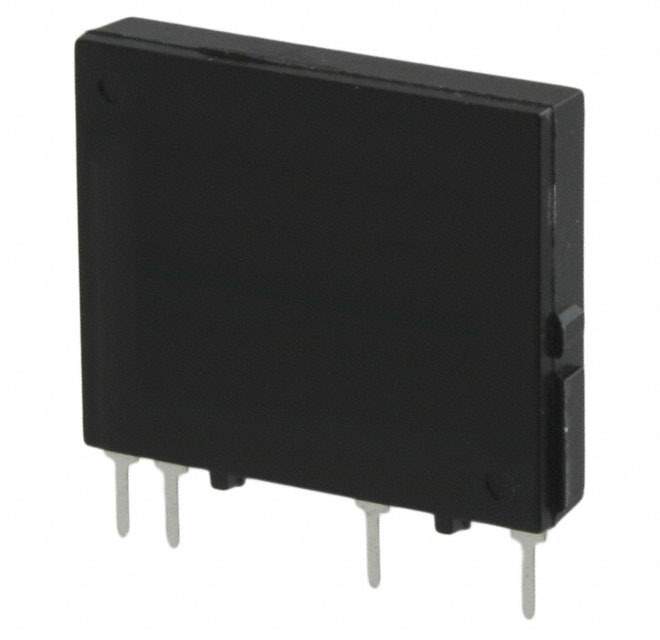

AQG12205 Real Image
Same model may have multiple batches, images only for reference.

AQG12205

Part No AQG12205
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 75-264V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 4 ~ 6VDC
Voltage - Load 75 V ~ 264 V
Load Current 1 A
Termination Style PC Pin
Case / Package 4-SIP
Supplier Device Package 4-SIP
Base Product Number AQG122
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Other Part Number AQG12205-NDR,255-3754,AQG12205-ND
Standard Package 20
Win Source Part Number 1323837-AQG12205
Ultra Librarian 3D Model Ultra Librarian AQG12205 CAD Model

Description

The AQG12205 is a SPST-NO (1 Form A) solid-state relay from Panasonic Electric Works.

  • Input Voltage Range: 4 ~ 6VDC
  • Output Type: AC
  • Load Current: 1A
  • Load Voltage Range: 75V to 264V
  • Package: 4-SIP
  • Mounting: Through-Hole
  • ROHS: Compliant
  • Standard Package: 20
