Same model may have multiple batches, images only for reference.

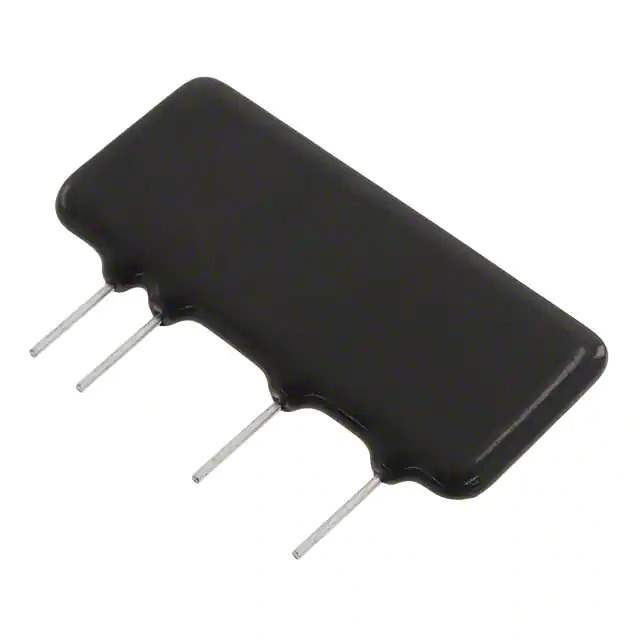

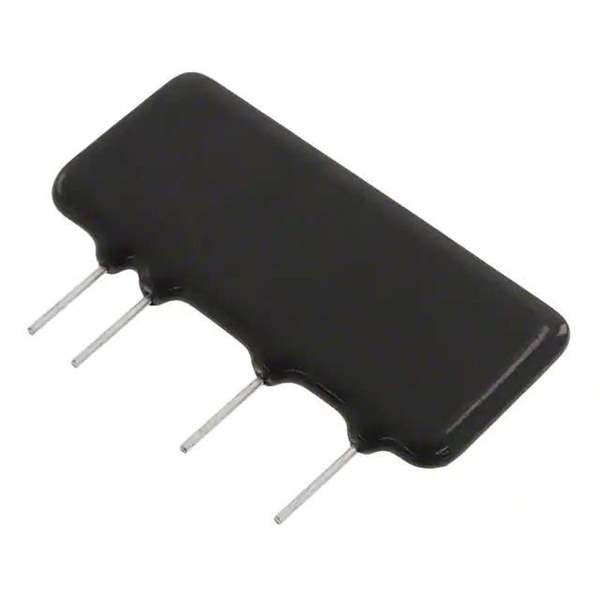

AQ2A1-C2-ZT5VDC Real Image
Same model may have multiple batches, images only for reference.

AQ2A1-C2-ZT5VDC

Part No AQ2A1-C2-ZT5VDC
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2A 75-125V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series AQ8
Package Bulk
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 4 ~ 6VDC
Voltage - Load 75 V ~ 125 V
Load Current 2 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIL
Base Product Number AQ2A1
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 861699-AQ2A1-C2-ZT5VDC
Ultra Librarian 3D Model Ultra Librarian AQ2A1-C2-ZT5VDC CAD Model

Description

The AQ8 series solid state relay, with part number 861699-AQ2A1-C2-ZT5VDC, is a high-quality electronic component designed for reliable switching applications.

  • Termination Style: PC pin
  • Input Voltage: 4-6V DC
  • Output: AC output with zero-crossing functionality
  • Circuit Configuration: SPST-NO
  • Load Current: 2A
  • Switching Voltage Range: 75V to 125V
  • Mounting: Through-hole
  • Package: 4-SIP
  • Manufacturer: Panasonic
