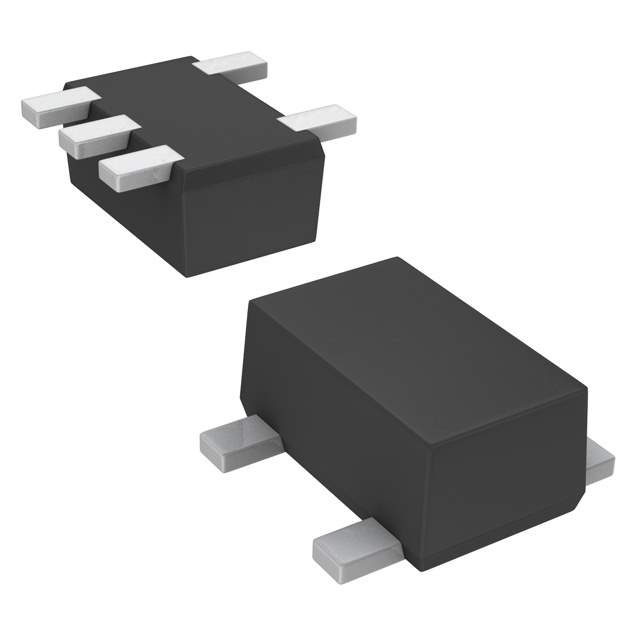

AN48836B-NL Real Image
Same model may have multiple batches, images only for reference.

AN48836B-NL

Part No AN48836B-NL
Manufacturer Panasonic
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAG SWITCH OMNIPOLAR SMINI-5DE / Digital Switch Omnipolar Switch Push-Pull Hall Effect SMINI-5DE
Datasheet
AN48836B-NL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Panasonic Electronic Components
Series AN488xx
Package Tape & Reel
Product Status Obsolete
Function Omnipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range ±6mT Trip, ±0.5mT Release
Test Condition 25°C
Voltage - Supply 1.65V ~ 3.6V
Current - Supply (Max) 5µA
Current - Output (Max) 2mA
Output Type Push-Pull
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package SMINI-5DE
Package / Case 6-SMD (5 Leads), Flat Lead
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Other Names AN48836BNL,AN48836B-NLDKR,AN48836B-NLCT,AN48836B-NLTR
Standard Package 3,000
Win Source Part Number 987915-AN48836B-NL
Ultra Librarian 3D Model Ultra Librarian AN48836B-NL CAD Model

Description

The AN48836B-NL is a magnetic sensor switch that falls under the category of Sensors, Transducers and is supplied by Panasonic Electronic Components.

  • Series: AN488xx
  • Output type: push-pull
  • Switch function: omnipolar
  • Sensing range: ±6mT Trip, ±0.5mT Release
  • Package: tape and reel
  • Standard package: 3,000
  • Mounting: SMD (SMT)
  • Technology: Hall Effect
  • Current supply: 5μA
  • Maximum output current: 2mA
  • Voltage supply: 1.65V to 3.6V
  • Temperature range: -40°C to 85°C
