Same model may have multiple batches, images only for reference.

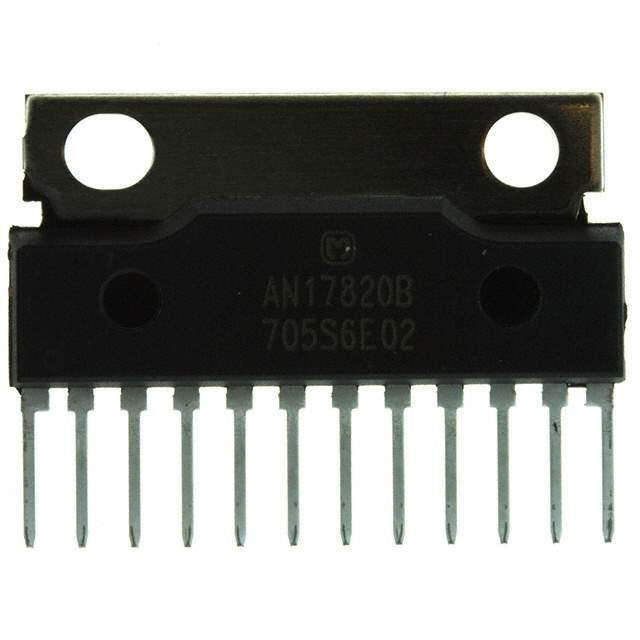

AN17820B Real Image
Same model may have multiple batches, images only for reference.

AN17820B

Part No AN17820B
Manufacturer Panasonic
Catalog Linear - Amplifiers - Audio
Description IC AUDIO AMP 7.5W 2CH SIL-12 / Audio Amp Speaker 2-CH Stereo 12.5W Class-AB 12-Pin(12+Tab) HSIP
Datasheet
AN17820B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Panasonic Electronic Components
Packaging Tube
Part Status Obsolete(EOL)
Type Class AB
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 7.5W x 2 @ 8 Ohm
Operating Supply Voltage 5 V ~ 18 V
Features Standby, Thermal Protection, Volume Control
Mounting Style Through Hole
Operating Temperature Range 25°C ~ 70°C (TA)
Manufacturer Package 12-SIL
Package 12-SIP + Tab
Win Source Part Number 768509-AN17820B
Popularity Medium
Supply and Demand Status Limited
Family Name AN17820
Introduction Date June 16, 2003
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AN17820B CAD Model

Description

The Panasonic Electronic Components AN17820B is an obsolete (EOL) integrated circuit designed for use in electronic circuits.

  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Operating Temperature: -25°C to 70°C
  • Applications: Audio amplifiers and stereo systems
