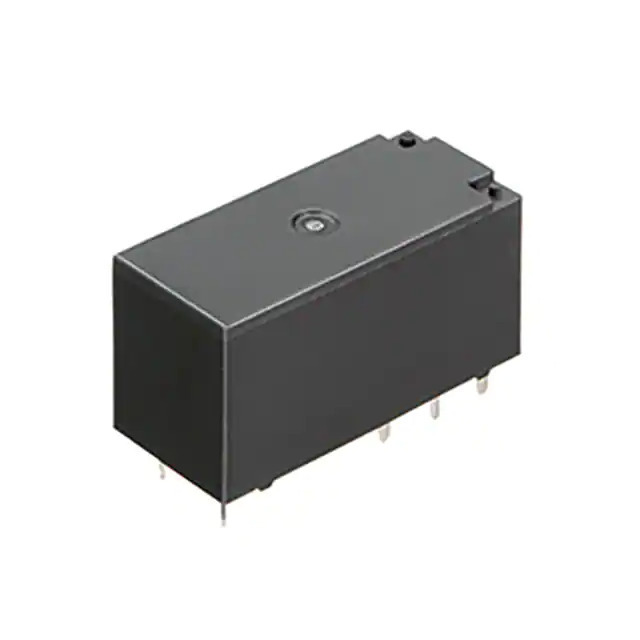

ALZN5B24W Panasonic
Same model may have multiple batches, images only for reference.

ALZN5B24W

Part No ALZN5B24W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZN
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number ALZN5B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373458-ALZN5B24W
Ultra Librarian 3D Model Ultra Librarian ALZN5B24W CAD Model

Description

The ALZN5B24W is a power relay from Panasonic Electric Works.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 24VDC
  • Contact Rating: 16A
  • Switching Voltage (max): 440VAC
  • Coil Current: 16.7mA
  • Coil Type: Non-Latching
  • Construction: Sealed, flux protection
  • Coil Insulation: Class B
  • Flammability Rating: UL94 V-0
  • Operate Time: 15ms
  • Release Time: 5ms
  • Application: General-Purpose
  • Coil Resistance: 1.44 kOhms
  • Package: Tray
  • ECCN: EAR99
