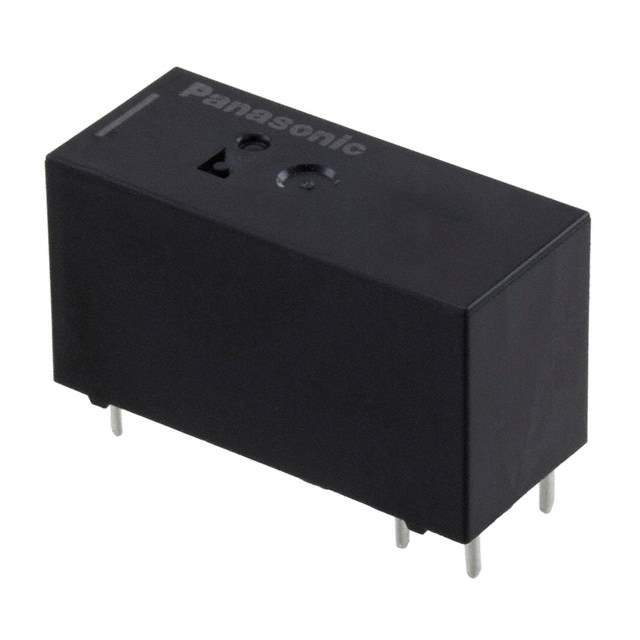

ALZ52B12W Real Image
Same model may have multiple batches, images only for reference.

ALZ52B12W

Part No ALZ52B12W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 105°C
Win Source Part Number 135280-ALZ52B12W
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ALZ52B12W CAD Model

Description

ALZ52B12W Weather-Resistant Relay Module

The ALZ52B12W relay module is engineered with enhanced waterproof features, suitable for outdoor and harsh environments. Its weather-resistant properties ensure stable operation under extreme conditions.

  • Applications:
    • Outdoor Lighting Control Systems
    • Weather Monitoring Systems
    • Marine Equipment
  • Features and Benefits:
    • Waterproof and Dustproof Design
    • Enhanced Protective Coating
    • Robust Terminal Connections
  • Additional Details:
    • IP Rating: IP67
    • Contact Rating: 10A at 250VAC
    • Relay Type: SPDT
